1750RT NXT3 Mustang 1750RT NXT3 Specifications & Technical Data (2018—2025)

The Mustang 1750RT NXT3 is a skid steer loader manufactured by Mustang since 2018. It has a weight of 3.9 tons and a transport len…

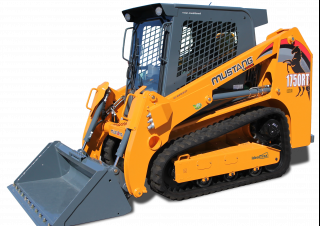

The Mustang 1750RT NXT3 is a skid steer loader manufactured by Mustang since 2018. It has a weight of 3.9 tons and a transport length of 2.81 meters. The bucket width is 1.67 meters, and the maximum discharge height is 2.49 meters. It has a travel speed of 12.4 km/h, with a transport width of 1.64 meters and a transport height of 2.1 meters. The rated operating capacity is 320 kilograms, and it is equipped with a burglar-proof system.

Skid Steer Loaders Mustang 1750RT NXT3

Technical specs - 1750RT NXT3 Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.9 t
Rated operating capacity
320 kg
Bucket width
1.67 m
Driver protection
KbR
Transport length
2.81 m
Transport width
1.64 m
Transport height
2.1 m
Travel speed
12.4 km/h
Max. discharge height
2.49 m
Model series
Track
Engine manuf.
Yanmar
Engine type
4TNV98C-NMS2
Engine power
51 kW
Displacement
3.3 l
Revolutions at max torque
1625 rpm
Max. torque
241 Nm
Emission level
Tier 4

More technical details, like: track width, standard tyres, bucket capacity, steering mode, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
Yes

Download datasheets (PDF)

Mustang 1750RT NXT3 FAQ

When was the Mustang 1750RT NXT3 manufactured?

The Mustang 1750RT NXT3 was first produced in 2018.

How much does the Mustang 1750RT NXT3 weigh?

The Mustang 1750RT NXT3 weighs 3.9 tons.

What are the transport dimensions of the Mustang 1750RT NXT3 skid steer loader?

The Mustang 1750RT NXT3 has a transport length of 2.81 meters, a transport width of 1.64 meters, and a transport height of 2.1 meters.

What is the travel speed of the Mustang 1750RT NXT3 skid steer loader?

The Mustang 1750RT NXT3 skid steer loader has a travel speed of 12.4 km/h.

What is the material handling capacity of the Mustang 1750RT NXT3 skid steer loader?

The Mustang 1750RT NXT3 has a rated operating capacity of 320 kg and a maximum discharge height of 2.49 meters.

What is the bucket width of the Mustang 1750RT NXT3 skid steer loader?

The bucket width of the Mustang 1750RT NXT3 skid steer loader is 1.67 meters.

What operator safety and support features does the Mustang 1750RT NXT3 have?

The Mustang 1750RT NXT3 is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.
