1750 RT Mustang 1750 RT Specifications & Technical Data (2012—2018)

The Mustang 1750 RT is a skid steer loader manufactured by Mustang from 2012 to 2018. It has a weight of 3.9 tons and a transport …

The Mustang 1750 RT is a skid steer loader manufactured by Mustang from 2012 to 2018. It has a weight of 3.9 tons and a transport length of 3.65 meters. The bucket capacity is 0.4 cubic meters, with a bucket width of 1.67 meters. The maximum discharge height is 2.49 meters, and it has a travel speed of 12 km/h. The transport width is 1.67 meters, and the transport height is 2.103 meters. The rated operating capacity is 1134 kilograms.

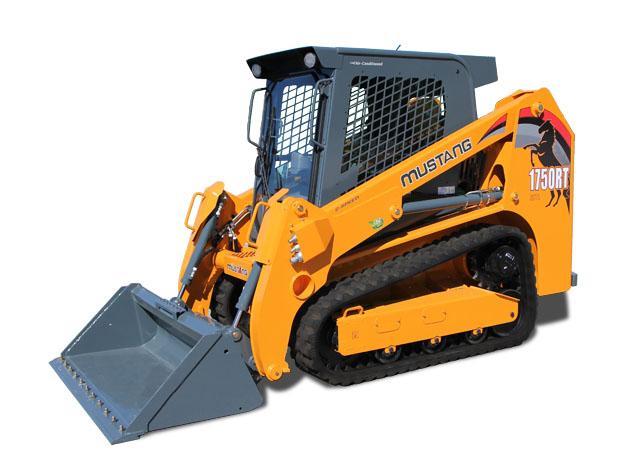

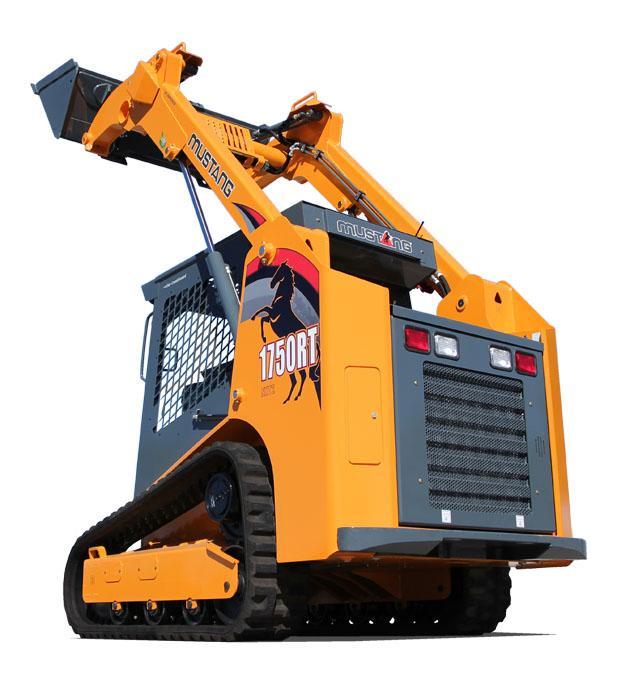

Skid Steer Loaders Mustang 1750 RT
Skid Steer Loaders Mustang 1750 RT
Skid Steer Loaders Mustang 1750 RT
Skid Steer Loaders Mustang 1750 RT
Skid Steer Loaders Mustang 1750 RT
Skid Steer Loaders Mustang 1750 RT

Technical specs - 1750 RT Mustang

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.9 t
Rated operating capacity
1134 kg
Bucket width
1.67 m
Bucket capacity
0.4 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.65 m
Transport width
1.67 m
Transport height
2.103 m
Travel speed
12 km/h
Max. discharge height
2.49 m
Engine manuf.
Yanmar
Engine type
4TNV98
Engine power
51 kW
Displacement
3.319 l
Revolutions at max torque
2500 rpm

More technical details, like: track width, standard tyres, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, lift geometry, access...

More technical details, like: track width, standard tyres, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, lift geometry, access, suspension seat, engine manufacturer, engine model, number of cylinders, aspiration, rated speed, engine output - net, torque, transmission type, drive method, track rollers, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Mustang 1750 RT FAQ

When was the Mustang 1750 RT skid steer loader manufactured?

The Mustang 1750 RT skid steer loader was manufactured from 2012 to 2018.

How much does the Mustang 1750 RT skid steer loader weigh?

The Mustang 1750 RT skid steer loader weighs 3.9 tons.

What are the transport dimensions of the Mustang 1750 RT skid steer loader?

The Mustang 1750 RT has a transport length of 3.65 meters, a transport width of 1.67 meters, and a transport height of 2.1 meters.

What is the travel speed of the Mustang 1750 RT skid steer loader?

The Mustang 1750 RT skid steer loader has a travel speed of 12 km/h.

What is the steering mode of the Mustang 1750 RT skid steer loader?

The Mustang 1750 RT skid steer loader uses the tank steering mode.

What is the material handling capacity of the Mustang 1750 RT skid steer loader?

The Mustang 1750 RT has a rated operating capacity of 1134 kg and a maximum discharge height of 2.49 meters.

What are the specifications of the primary work tool on the Mustang 1750 RT skid steer loader?

The Mustang 1750 RT skid steer loader has a bucket with a capacity of 0.4 cubic meters and a width of 1.67 meters.

What operator safety and support features does the Mustang 1750 RT have?

The Mustang 1750 RT is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.
