MF 516 XP MF Industrial MF 516 XP Specifications & Technical Data (1995—1998)

Model rating
5,25 / 10

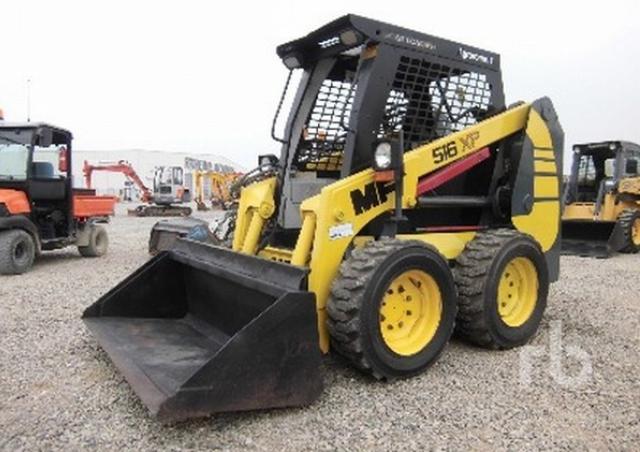

The MF 516 XP Skid Steer Loader, manufactured by MF Industrial from 1995 to 1998, has a weight of 2.39 tons. It has a transport le…

The MF 516 XP Skid Steer Loader, manufactured by MF Industrial from 1995 to 1998, has a weight of 2.39 tons. It has a transport length of 3.22 meters and a bucket capacity of 0.47 cubic meters. With a travel speed of 10 km/h, it has a transport width of 1.63 meters and a transport height of 1.96 meters. The rated operating capacity of this construction machine is 655 kilograms.

Skid Steer Loaders MF Industrial MF 516 XP

Technical specs - MF 516 XP MF Industrial

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.39 t
Rated operating capacity
655 kg
Standard tyres
10.0-16.5
Bucket capacity
0.47 m³
Transport length
3.22 m
Transport width
1.63 m
Transport height
1.96 m
Travel speed
10 km/h
Engine manuf.
Perkins
Engine type
104.22
Engine power
35 kW

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: track width, bucket width, driver protection, steering mode, max. discharge height, lifting force, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

MF Industrial MF 516 XP FAQ

When was the MF Industrial MF 516 XP manufactured?

The MF Industrial MF 516 XP was manufactured from 1995 to 1998.

How much does the MF Industrial MF 516 XP weigh?

The MF Industrial MF 516 XP weighs 2.39 tons.

What are the transport dimensions of the MF Industrial MF 516 XP skid steer loader?

The MF Industrial MF 516 XP has a transport length of 3.22 meters, a transport width of 1.63 meters, and a transport height of 1.96 meters.

What is the travel speed of the MF Industrial MF 516 XP skid steer loader?

The MF Industrial MF 516 XP has a travel speed of 10 km/h.

What is the standard tyre size of the MF Industrial MF 516 XP skid steer loader?

The standard tyre size of the MF Industrial MF 516 XP skid steer loader is 10.0-16.5.

What is the rated operating capacity of the MF Industrial MF 516 XP skid steer loader?

The MF Industrial MF 516 XP skid steer loader has a rated operating capacity of 655 kilograms.

What is the bucket capacity of the MF Industrial MF 516 XP skid steer loader?

The MF Industrial MF 516 XP skid steer loader has a bucket capacity of 0.47 cubic meters.
