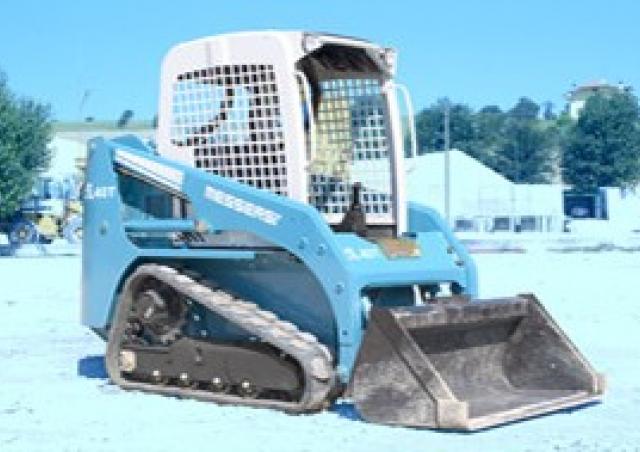

    Messersi CTL40T Specifications & Technical Data (2021-2021)

    Rate this machine now!

    Weight: 2.22t – Rated operating capacity: 520kg – Track width: 250mm – Bucket capacity: 0.244m³ – Transport length: 2.905m – Transport width: 1.3m

    Technical specs - CTL40T Messersi


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Weight 2.22 t
    • Rated operating capacity 520 kg
    • Track width 250 mm
    • Bucket capacity 0.244 m³
    • Transport length 2.905 m
    • Transport width 1.3 m
    • Transport height 1.95 m
    • Travel speed 10 km/h
    • Max. discharge height 3.47 m
    • Lifting force 9.3 kN
    • Engine manuf. Kubota
    • Engine type V1505T
    • Engine power 30 kW
    • Displacement 1.498 l
    • Revolutions at max torque 2800 rpm
    • Max. torque 120 Nm
    • No. of cylinders 4
    • Emission level Stage V
    • Standard tyres ###
    • Bucket width ###
    • Driver protection ###
    • Steering mode ###
    • Dimension lxwxh ###
    • Cylinder bore x stroke ###

    Basic model with ROPS cabin and std. shovel with teeth

    Special equipment

    • Diesel particulate filter
    • LPG motor
    • Burglar proof system
