OJ65-W Mammut OJ65-W Specifications & Technical Data (2024—2026)

Weight: 3.8t – Rated operating capacity: 950kg – Standard tyres: 26*12-12 – Bucket capacity: 0.5m³ – Transport length: 3.58m – Transport width: 1.78m

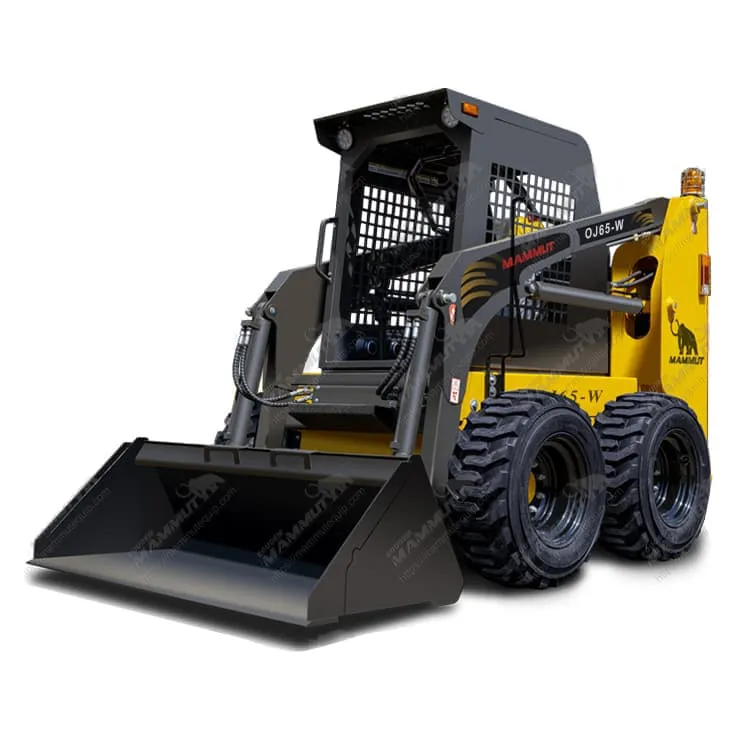

Skid Steer Loaders Mammut OJ65-W

Technical specs - OJ65-W Mammut

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.8 t
Rated operating capacity
950 kg
Standard tyres
26*12-12
Bucket capacity
0.5 m³
Transport length
3.58 m
Transport width
1.78 m
Transport height
2.15 m
Travel speed
12 km/h
Max. discharge height
2.43 m
Model series
OJ
Engine manuf.
Xinchai
Engine type
498T
Engine power
55 kW
Revolutions at max torque
1800 rpm
Max. torque
186 Nm

More technical details, like: track width, bucket width, driver protection, steering mode, lifting force, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Mammut OJ65-W FAQ

When was the Mammut OJ65-W manufactured?

The Mammut OJ65-W was first produced in 2024.

How much does the Mammut OJ65-W skid steer loader weigh?

The Mammut OJ65-W skid steer loader weighs 3.8 tons.

What are the transport dimensions of the Mammut OJ65-W skid steer loader?

The Mammut OJ65-W has a transport length of 3.58 meters, a transport width of 1.78 meters, and a transport height of 2.15 meters.

What is the travel speed of the Mammut OJ65-W skid steer loader?

The Mammut OJ65-W has a travel speed of 12 km/h.

What are the undercarriage specifications of the Mammut OJ65-W skid steer loader?

The Mammut OJ65-W skid steer loader is equipped with standard tyres sized 26*12-12.

What is the material handling capacity of the Mammut OJ65-W skid steer loader?

The Mammut OJ65-W has a rated operating capacity of 950 kg and a maximum discharge height of 2.43 meters.

What is the bucket capacity of the Mammut OJ65-W skid steer loader?

The Mammut OJ65-W skid steer loader has a bucket capacity of 0.5 cubic meters.

How much is a Mammut OJ65-W Skid steer loader (2024u20132025) worth?

The residual value of the Mammut OJ65-W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
