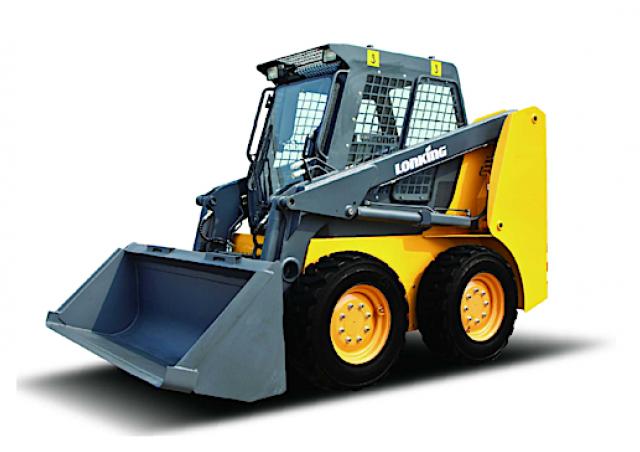

CDM312 V Lonking CDM312 V Specifications & Technical Data (2017—2026)

The Lonking CDM312 V is a construction machine manufactured by Lonking since 2017. It has a weight of 3.7 tons and a transport len…

The Lonking CDM312 V is a construction machine manufactured by Lonking since 2017. It has a weight of 3.7 tons and a transport length of 3.46 meters. The bucket capacity is 0.54 cubic meters, with a bucket width of 1.82 meters. The maximum discharge height is 2.44 meters. It has a travel speed of 11.8 kilometers per hour. The transport width is 1.82 meters, and the transport height is 2 meters. The lifting force is 25.9 kilonewtons, and it has a rated operating capacity of 1230 kilograms.

Skid Steer Loaders Lonking CDM312 V

Technical specs - CDM312 V Lonking

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.7 t
Rated operating capacity
1230 kg
Standard tyres
12×16.5
Bucket width
1.82 m
Bucket capacity
0.54 m³
Driver protection
KbR
Transport length
3.46 m
Transport width
1.82 m
Transport height
2 m
Travel speed
11.8 km/h
Max. discharge height
2.44 m
Lifting force
25.9 kN
Model series
CDM
Engine manuf.
Kubota
Engine type
V3800DI-T-E3B-CSL2-1
Engine power
68.6 kW
Displacement
3.769 l
Cylinder bore x stroke
120x100 mm
Emission level
Euro IIIA

More technical details, like: track width, steering mode, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Lonking CDM312 V FAQ

When was the Lonking CDM312 V manufactured?

The Lonking CDM312 V was first produced in 2017.

How much does the Lonking CDM312 V skid steer loader weigh?

The Lonking CDM312 V skid steer loader weighs 3.7 tons.

What are the transport dimensions of the Lonking CDM312 V skid steer loader?

The Lonking CDM312 V has a transport length of 3.46 meters, a transport width of 1.82 meters, and a transport height of 2 meters.

What is the travel speed of the Lonking CDM312 V skid steer loader?

The Lonking CDM312 V has a travel speed of 11.8 km/h.

What are the undercarriage specifications of the Lonking CDM312 V skid steer loader?

The Lonking CDM312 V skid steer loader has standard tyres sized 12u00d716.5.

What is the lifting force of the Lonking CDM312 V skid steer loader?

The Lonking CDM312 V skid steer loader has a lifting force of 25.9 kN.

What is the material handling capacity of the Lonking CDM312 V skid steer loader?

The Lonking CDM312 V skid steer loader has a rated operating capacity of 1230 kg and a maximum discharge height of 2.44 meters.

What are the specifications of the primary work tool on the Lonking CDM312 V skid steer loader?

The primary work tool of the Lonking CDM312 V skid steer loader has a bucket capacity of 0.54 cubic meters and a bucket width of 1.82 meters.

What operator safety features does the Lonking CDM312 V skid steer loader have?

The Lonking CDM312 V skid steer loader is equipped with a cabin that includes ROPS for driver protection.

How much is a Lonking CDM312 V Skid steer loader (2017u20132025) worth?

The residual value of the Lonking CDM312 V depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
