903 Eco Locust 903 Eco Specifications & Technical Data (2019—2026)

The Locust 903 Eco is a skid steer loader manufactured since 2019. With a weight of 3.56 tons and a transport length of 3.38 meter…

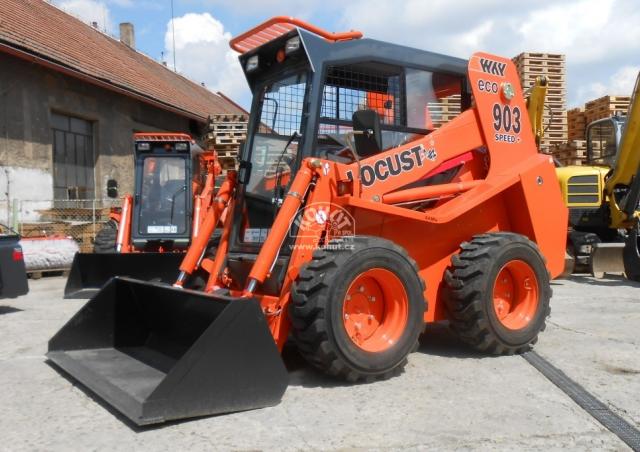

The Locust 903 Eco is a skid steer loader manufactured since 2019. With a weight of 3.56 tons and a transport length of 3.38 meters, it is a compact and maneuverable machine. It has a bucket capacity of 0.45 cubic meters and can reach a maximum discharge height of 2.62 meters. With a travel speed of 15 km/h, it can quickly move around the construction site. The transport width is 1.88 meters and the transport height is 2.09 meters. It has a lifting force of 24 kN and a rated operating capacity of 935 kg.

Skid Steer Loaders Locust 903 Eco

Technical specs - 903 Eco Locust

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.56 t
Rated operating capacity
935 kg
Bucket capacity
0.45 m³
Driver protection
KbR
Transport length
3.38 m
Transport width
1.88 m
Transport height
2.09 m
Travel speed
15 km/h
Max. discharge height
2.62 m
Lifting force
24 kN

More technical details, like: track width, standard tyres, bucket width, steering mode, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: track width, standard tyres, bucket width, steering mode, model series, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Locust 903 Eco FAQ

When was the Locust 903 Eco manufactured?

The Locust 903 Eco was first produced in 2019.

How much does the Locust 903 Eco skid steer loader weigh?

The Locust 903 Eco skid steer loader weighs 3.56 tons.

What are the transport dimensions of the Locust 903 Eco skid steer loader?

The Locust 903 Eco has a transport length of 3.38 meters, a transport width of 1.88 meters, and a transport height of 2.09 meters.

What is the travel speed of the Locust 903 Eco skid steer loader?

The Locust 903 Eco has a travel speed of 15 km/h.

What is the power rating of the Locust 903 Eco skid steer loader?

There is no power rating data available for the Locust 903 Eco skid steer loader in the provided source data.

What is the material handling capacity of the Locust 903 Eco skid steer loader?

The Locust 903 Eco has a rated operating capacity of 935 kg and a maximum discharge height of 2.62 meters.

What is the bucket capacity of the Locust 903 Eco skid steer loader?

The Locust 903 Eco skid steer loader has a bucket capacity of 0.45 cubic meters.

What operator safety and support features does the Locust 903 Eco have?

The Locust 903 Eco is equipped with a cabin that includes ROPS for driver protection.

How much is a Locust 903 Eco Skid steer loader (2019u20132025) worth?

The residual value of the Locust 903 Eco depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
