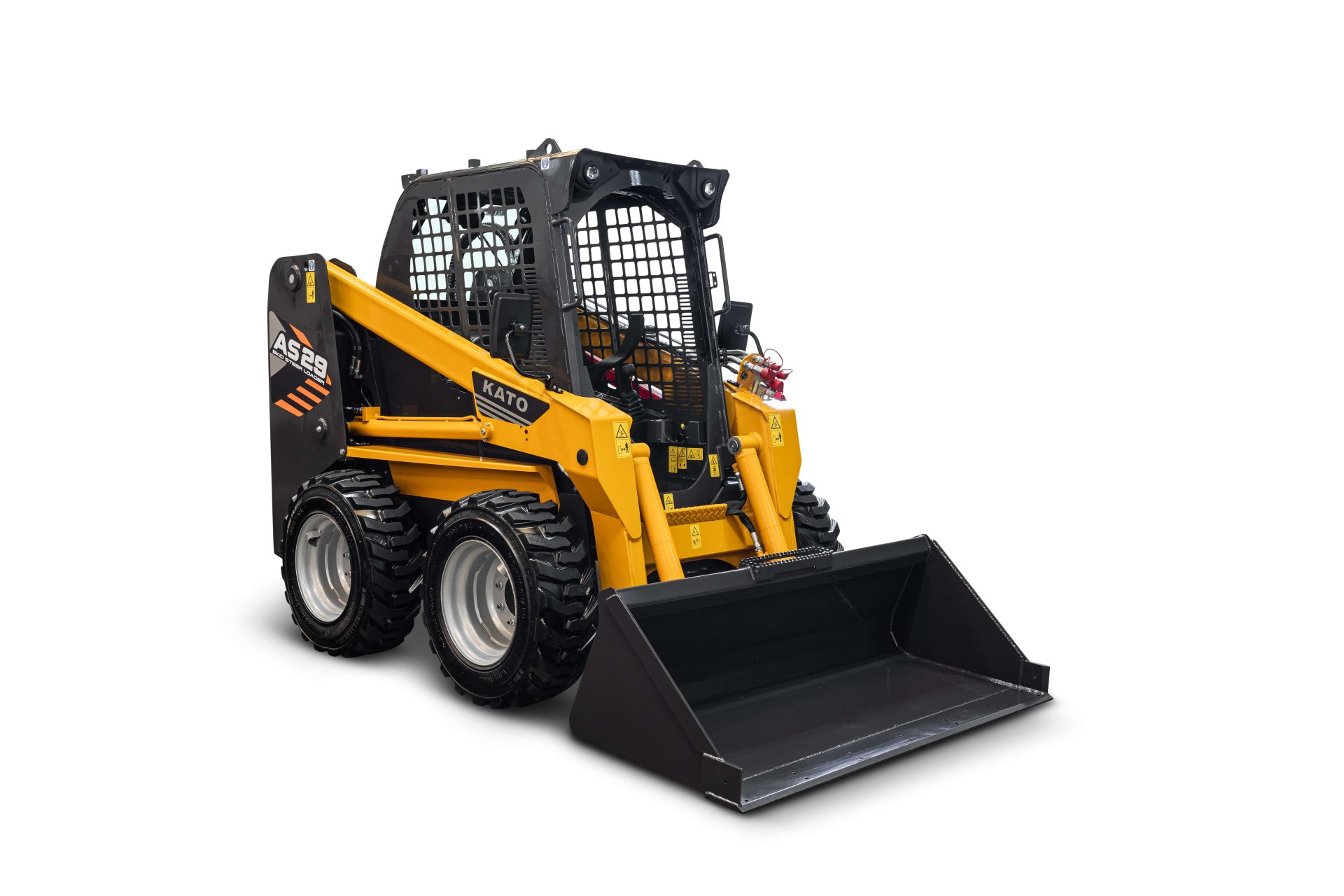

AS29R Kato Imer AS29R Specifications & Technical Data (2026—2026)

Weight: 2.995t – Rated operating capacity: 820kg – Bucket width: 1.727m – Transport height: 2.024m – Travel speed: 11.3km/h – Model series: AS

Technical specs - AS29R Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.995 t
Rated operating capacity
820 kg
Bucket width
1.727 m
Transport height
2.024 m
Travel speed
11.3 km/h
Model series
AS
Engine manuf.
Doosan
Engine type
D24
Engine power
55.1 kW
Displacement
2.4 l
No. of cylinders
4

More technical details, like: track width, standard tyres, bucket capacity, driver protection, steering mode, transport length, transport width, max. discharge height, lifting force, dimension lxwxh, revolutions at max torque, max. torque...

More technical details, like: track width, standard tyres, bucket capacity, driver protection, steering mode, transport length, transport width, max. discharge height, lifting force, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
