AS28 Kato Imer AS28 Specifications & Technical Data (2020—2023)

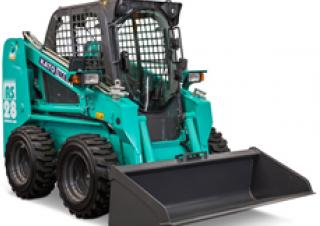

The Kato Imer AS28 is a skid steer loader manufactured since 2020. It has a weight of 2.92 tons and a transport length of 3.25 met…

The Kato Imer AS28 is a skid steer loader manufactured since 2020. It has a weight of 2.92 tons and a transport length of 3.25 meters. The bucket capacity is 0.39 cubic meters, with a bucket width of 1.73 meters. The maximum discharge height is 2.19 meters. The transport width and height are both 1.73 meters and 1.98 meters respectively. The rated operating capacity is 782 kilograms.

Skid Steer Loaders Kato Imer AS28

Technical specs - AS28 Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.92 t
Rated operating capacity
782 kg
Bucket width
1.73 m
Bucket capacity
0.39 m³
Transport length
3.25 m
Transport width
1.73 m
Transport height
1.98 m
Max. discharge height
2.19 m
Model series
AS

More technical details, like: track width, standard tyres, driver protection, steering mode, travel speed, lifting force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: track width, standard tyres, driver protection, steering mode, travel speed, lifting force, engine manuf., engine type, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Kato Imer AS28 FAQ

When was the Kato Imer AS28 manufactured?

The Kato Imer AS28 was manufactured from 2020 to 2023.

How much does the Kato Imer AS28 skid steer loader weigh?

The Kato Imer AS28 skid steer loader weighs 2.92 tons.

What are the transport dimensions of the Kato Imer AS28 skid steer loader?

The Kato Imer AS28 has a transport length of 3.25 meters, a transport width of 1.73 meters, and a transport height of 1.98 meters.

What is the material handling capacity of the Kato Imer AS28 skid steer loader?

The Kato Imer AS28 has a rated operating capacity of 782 kg and a maximum discharge height of 2.19 meters.

What are the specifications of the primary work tool bucket on the Kato Imer AS28 skid steer loader?

The Kato Imer AS28 skid steer loader has a bucket with a capacity of 0.39 cubic meters and a width of 1.73 meters.
