AS12 Kato Imer AS12 Specifications & Technical Data (2020—2026)

The Kato Imer AS12 is a skid steer loader manufactured since 2020. It has a weight of 1.37 tons and a transport length of 2.6 mete…

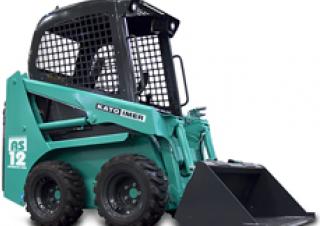

The Kato Imer AS12 is a skid steer loader manufactured since 2020. It has a weight of 1.37 tons and a transport length of 2.6 meters. The bucket capacity is 0.18 cubic meters, with a bucket width of 1.13 meters. The maximum discharge height is 2 meters. The transport width is 1.13 meters and the transport height is 1.88 meters. It has a rated operating capacity of 350 kilograms.

Skid Steer Loaders Kato Imer AS12

Technical specs - AS12 Kato Imer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.37 t
Rated operating capacity
350 kg
Bucket width
1.13 m
Bucket capacity
0.18 m³
Transport length
2.6 m
Transport width
1.13 m
Transport height
1.88 m
Max. discharge height
2 m
Model series
AS
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
15 kW
Displacement
1.115 l
Revolutions at max torque
2500 rpm

More technical details, like: track width, standard tyres, driver protection, steering mode, travel speed, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Kato Imer AS12 FAQ

When was the Kato Imer AS12 manufactured?

The Kato Imer AS12 was first produced in 2020.

How much does the Kato Imer AS12 weigh?

The Kato Imer AS12 weighs 1.37 tons.

What are the transport dimensions of the Kato Imer AS12 skid steer loader?

The Kato Imer AS12 has a transport length of 2.6 meters, a transport width of 1.13 meters, and a transport height of 1.88 meters.

What is the material handling capacity of the Kato Imer AS12 skid steer loader?

The Kato Imer AS12 has a rated operating capacity of 350 kg and a maximum discharge height of 2 meters.

What are the specifications of the primary work tool bucket on the Kato Imer AS12 skid steer loader?

The primary work tool bucket of the Kato Imer AS12 has a capacity of 0.18 cubic meters and a width of 1.13 meters.

How much is a Kato Imer AS12 Skid steer loader (2020u20132025) worth?

The residual value of the Kato Imer AS12 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
