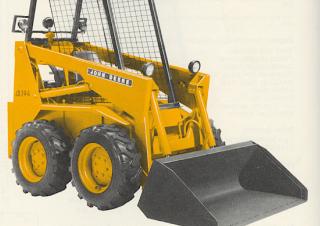

JD24A John Deere Construction JD24A Specifications & Technical Data (1976—2021)

The John Deere Construction JD24A is a skid steer loader that has been manufactured from 1976 to 2021. It has a weight of 2.487 to…

The John Deere Construction JD24A is a skid steer loader that has been manufactured from 1976 to 2021. It has a weight of 2.487 tons and a transport length of 2.93 meters. The bucket capacity is 0.283 cubic meters, with a bucket width of 1.42 meters. The maximum discharge height is 2.79 meters, and it has a travel speed of 10.5 km/h. The transport width and height are both 1.42 and 1.64 meters respectively.

Skid Steer Loaders John Deere Construction JD24A

Technical specs - JD24A John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.487 t
Standard tyres
10-16.5
Bucket width
1.42 m
Bucket capacity
0.283 m³
Driver protection
KbR
Transport length
2.93 m
Transport width
1.42 m
Transport height
1.64 m
Travel speed
10.5 km/h
Max. discharge height
2.79 m
Model series
A
Engine manuf.
Continental
Engine type
Y-112
Engine power
27.6 kW
Displacement
1.835 l
Max. torque
122 Nm
No. of cylinders
4
Cylinder bore x stroke
81x89 mm

More technical details, like: rated operating capacity, track width, steering mode, lifting force, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction JD24A FAQ

When was the John Deere Construction JD24A manufactured?

The John Deere Construction JD24A was manufactured from 1976 to 2021.

How much does the John Deere Construction JD24A weigh?

The John Deere Construction JD24A weighs 2.49 tons.

What are the transport dimensions of the John Deere Construction JD24A skid steer loader?

The John Deere Construction JD24A has a transport length of 2.93 meters, a transport width of 1.42 meters, and a transport height of 1.64 meters.

What is the travel speed of the John Deere Construction JD24A skid steer loader?

The John Deere Construction JD24A has a travel speed of 10.5 km/h.

What is the standard tyre size of the John Deere Construction JD24A skid steer loader?

The John Deere Construction JD24A skid steer loader has standard tyres sized 10-16.5.

What is the maximum discharge height of the John Deere Construction JD24A skid steer loader?

The John Deere Construction JD24A has a maximum discharge height of 2.79 meters.

What are the specifications of the bucket on the John Deere Construction JD24A skid steer loader?

The bucket of the John Deere Construction JD24A has a capacity of 0.28 cubic meters and a width of 1.42 meters.

What operator safety and support features does the John Deere Construction JD24A have?

The John Deere Construction JD24A is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.
