7775 John Deere Construction 7775 Specifications & Technical Data (1994—2021)

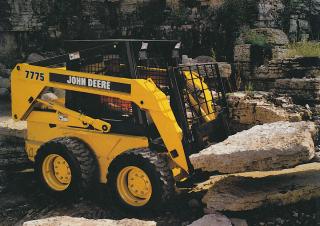

The John Deere Construction 7775 is a skid steer loader manufactured by John Deere Construction from 1994 to 2021. It has a weight…

The John Deere Construction 7775 is a skid steer loader manufactured by John Deere Construction from 1994 to 2021. It has a weight of 2.452 tons and a transport length of 3.22 meters. The maximum discharge height is 2.93 meters, and it has a travel speed of 11.9 km/h. The transport width is 1.66 meters, and the transport height is 1.9 meters.

Skid Steer Loaders John Deere Construction 7775

Technical specs - 7775 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.452 t
Driver protection
KbR
Transport length
3.22 m
Transport width
1.66 m
Transport height
1.9 m
Travel speed
11.9 km/h
Max. discharge height
2.93 m
Model series
220
Engine manuf.
John Deere
Engine type
220
Engine power
38.7 kW
Displacement
2.187 l
No. of cylinders
4

More technical details, like: rated operating capacity, track width, standard tyres, bucket width, bucket capacity, steering mode, lifting force, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 7775 FAQ

When was the John Deere Construction 7775 manufactured?

The John Deere Construction 7775 was manufactured from 1994 to 2021.

How much does the John Deere Construction 7775 skid steer loader weigh?

The John Deere Construction 7775 skid steer loader weighs 2.45 tons.

What are the transport dimensions of the John Deere Construction 7775 skid steer loader?

The John Deere Construction 7775 skid steer loader has a transport length of 3.22 meters, a transport width of 1.66 meters, and a transport height of 1.9 meters.

What is the travel speed of the John Deere Construction 7775 skid steer loader?

The John Deere Construction 7775 skid steer loader has a travel speed of 11.9 km/h.

What is the maximum discharge height of the John Deere Construction 7775?

The John Deere Construction 7775 has a maximum discharge height of 2.93 meters.

What operator safety and support features does the John Deere Construction 7775 skid steer loader have?

The John Deere Construction 7775 skid steer loader features a cabin with ROPS for driver protection.

How much is a John Deere Construction 7775 Skid steer loader (1994u20132021) worth?

The residual value of the John Deere Construction 7775 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
