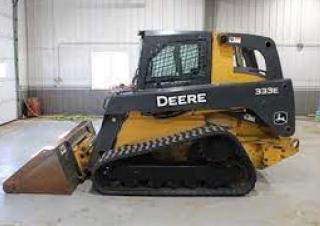

333E John Deere Construction 333E Specifications & Technical Data (2010—2016)

The John Deere Construction 333E Skid Steer Loader, manufactured from 2010 to 2016, weighs 5.357 tons and has a transport length o…

The John Deere Construction 333E Skid Steer Loader, manufactured from 2010 to 2016, weighs 5.357 tons and has a transport length of 3.05 meters. It can reach a maximum discharge height of 3.2 meters and has a travel speed of 8.5 km/h. The transport width is 2.05 meters and the transport height is 2.15 meters. The track width is 450 mm. It has a rated operating capacity of 2145 kg.

Skid Steer Loaders John Deere Construction 333E

Technical specs - 333E John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.357 t
Rated operating capacity
2145 kg
Track width
450 mm
Transport length
3.05 m
Transport width
2.05 m
Transport height
2.15 m
Travel speed
8.5 km/h
Max. discharge height
3.2 m
Engine manuf.
Yanmar
Engine type
4TNV94CHT
Engine power
72 kW
Displacement
3.1 l
Max. torque
395 Nm
No. of cylinders
4
Emission level
EPA Interim Tier 4/EU Stage IIIB

More technical details, like: standard tyres, bucket width, bucket capacity, driver protection, steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 333E FAQ

When was the John Deere Construction 333E manufactured?

The John Deere Construction 333E was manufactured from 2010 to 2016.

How much does the John Deere Construction 333E skid steer loader weigh?

The John Deere Construction 333E skid steer loader weighs 5.36 tons.

What are the transport dimensions of the John Deere Construction 333E skid steer loader?

The John Deere Construction 333E skid steer loader has a transport length of 3.05 meters, a transport width of 2.05 meters, and a transport height of 2.15 meters.

What is the travel speed of the John Deere Construction 333E skid steer loader?

The John Deere Construction 333E skid steer loader has a travel speed of 8.5 km/h.

What is the track width of the John Deere Construction 333E skid steer loader?

The John Deere Construction 333E skid steer loader has a track width of 450 mm.

What is the material handling capacity of the John Deere Construction 333E skid steer loader?

The John Deere Construction 333E skid steer loader has a rated operating capacity of 2145 kg and a maximum discharge height of 3.2 meters.
