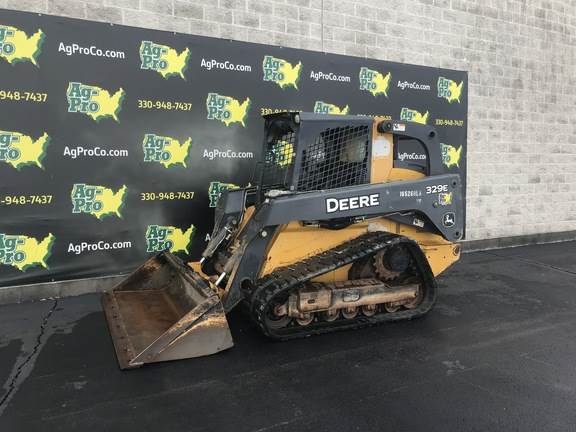

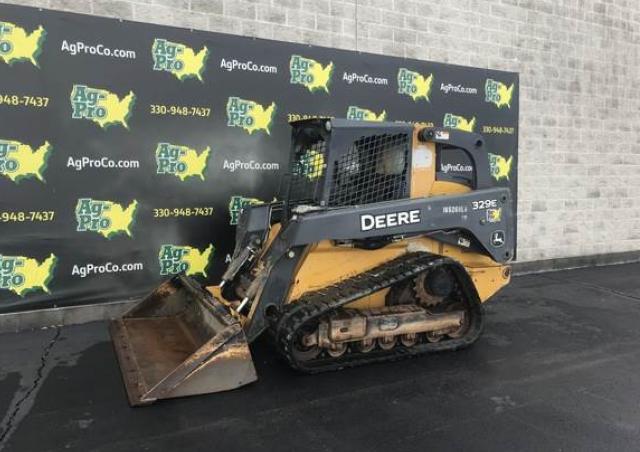

329E John Deere Construction 329E Specifications & Technical Data (2010—2016)

The John Deere Construction 329E is a skid steer loader manufactured from 2010 to 2016. It has a weight of 5.221 tons and a transp…

The John Deere Construction 329E is a skid steer loader manufactured from 2010 to 2016. It has a weight of 5.221 tons and a transport length of 3.05 meters. The maximum discharge height is 3.2 meters, and it has a travel speed of 10 km/h. The transport width is 2 meters, and the transport height is 2.15 meters. The track width is 400 mm, and it has a rated operating capacity of 1884 kg.

Skid Steer Loaders John Deere Construction 329E

Technical specs - 329E John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.221 t
Rated operating capacity
1884 kg
Track width
400 mm
Transport length
3.05 m
Transport width
2 m
Transport height
2.15 m
Travel speed
10 km/h
Max. discharge height
3.2 m
Engine manuf.
Yanmar
Engine type
4TNV94CHT
Engine power
62 kW
Displacement
3.1 l
Max. torque
360 Nm
No. of cylinders
4
Emission level
EPA Interim Tier 4/EU Stage IIIB

More technical details, like: standard tyres, bucket width, bucket capacity, driver protection, steering mode, lifting force, model series, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 329E FAQ

When was the John Deere Construction 329E manufactured?

The John Deere Construction 329E was manufactured from 2010 to 2016.

How much does the John Deere Construction 329E skid steer loader weigh?

The John Deere Construction 329E skid steer loader weighs 5.22 tons.

What are the transport dimensions of the John Deere Construction 329E skid steer loader?

The John Deere Construction 329E has a transport length of 3.05 meters, a transport width of 2 meters, and a transport height of 2.15 meters.

What is the travel speed of the John Deere Construction 329E skid steer loader?

The John Deere Construction 329E skid steer loader has a travel speed of 10 km/h.

What is the track width of the John Deere Construction 329E skid steer loader?

The John Deere Construction 329E skid steer loader has a track width of 400 mm.

What is the material handling capacity of the John Deere Construction 329E skid steer loader?

The John Deere Construction 329E has a rated operating capacity of 1884 kg and a maximum discharge height of 3.2 meters.
