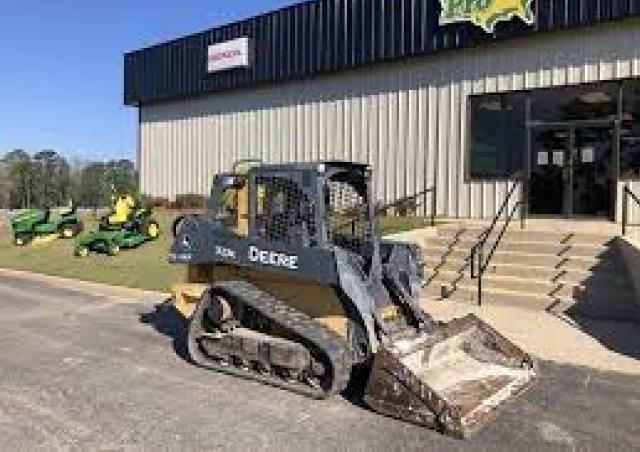

323E John Deere Construction 323E Specifications & Technical Data (2010—2016)
Technical specs - 323E John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 4.286 t
- Rated operating capacity
- 1634 kg
- Track width
- 320 mm
- Transport length
- 2.85 m
- Transport width
- 1.82 m
- Transport height
- 2.05 m
- Travel speed
- 10 km/h
- Max. discharge height
- 3.12 m
- Engine manuf.
- Yanmar
- Engine type
- 4TNV98CT
- Engine power
- 52.5 kW
- Displacement
- 3.3 l
- Revolutions at max torque
- 2500 rpm
- Max. torque
- 280/1800 Nm
- No. of cylinders
- 4
- Emission level
- Tier 4f/EU IV
More technical details, like: standard tyres, bucket width, bucket capacity, driver protection, steering mode, lifting force, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
Download datasheets (PDF)
