319D John Deere Construction 319D Specifications & Technical Data (2005—2013)

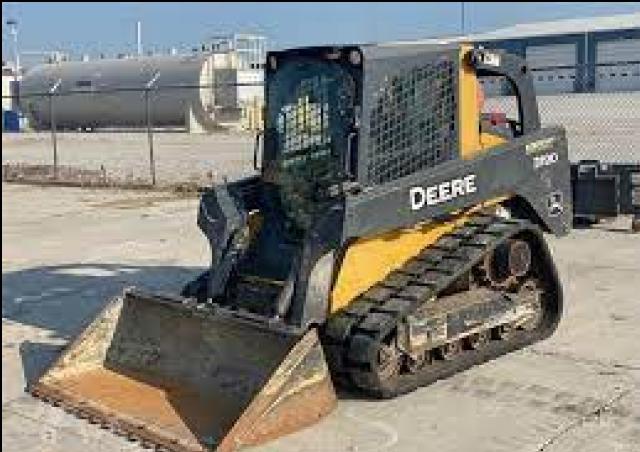

The John Deere Construction 319D is a skid steer loader manufactured from 2005 to 2013. It has a weight of 3.882 tons and a transp…

The John Deere Construction 319D is a skid steer loader manufactured from 2005 to 2013. It has a weight of 3.882 tons and a transport length of 2.74 meters. The maximum discharge height is 3 meters, and it has a travel speed of 9.8 km/h. The transport width is 1.82 meters, and the transport height is 2 meters. The track width is 320 mm, and it has a rated operating capacity of 1271 kg.

Skid Steer Loaders John Deere Construction 319D

Technical specs - 319D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.882 t
Rated operating capacity
1271 kg
Track width
320 mm
Transport length
2.74 m
Transport width
1.82 m
Transport height
2 m
Travel speed
9.8 km/h
Max. discharge height
3 m
Engine manuf.
John Deere
Engine type
E 4024HT
Engine power
47.1 kW
Displacement
2.4 l
Revolutions at max torque
1600 rpm
Max. torque
230 Nm
No. of cylinders
4
Emission level
EPA Interim Tier 4/EU Stage IIIB

More technical details, like: standard tyres, bucket width, bucket capacity, driver protection, steering mode, lifting force, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

John Deere Construction 319D FAQ

When was the John Deere Construction 319D manufactured?

The John Deere Construction 319D was manufactured from 2005 to 2013.

How much does the John Deere Construction 319D skid steer loader weigh?

The John Deere Construction 319D skid steer loader weighs 3.88 tons.

What are the transport dimensions of the John Deere Construction 319D skid steer loader?

The John Deere Construction 319D has a transport length of 2.74 meters, a transport width of 1.82 meters, and a transport height of 2 meters.

What is the travel speed of the John Deere Construction 319D skid steer loader?

The John Deere Construction 319D skid steer loader has a travel speed of 9.8 km/h.

What is the track width of the undercarriage on the John Deere Construction 319D skid steer loader?

The John Deere Construction 319D skid steer loader has a track width of 320 mm.

What is the material handling capacity of the John Deere Construction 319D skid steer loader?

The John Deere Construction 319D has a rated operating capacity of 1271 kg and a maximum discharge height of 3 meters.
