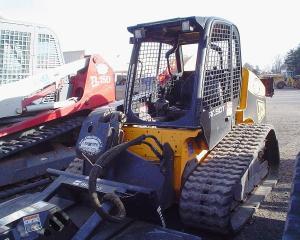

Robot 1110 JCB Robot 1110 Specifications & Technical Data (2008—2013)

Weight

SAE operating weight. Fully operational with quickhitch, standard shovel, full fuel tank, fully glazed cab + 75kg operator: I90 3710 kg, I110 3820 kg.

Standard equipment

ROPS and FOPS integrated canopy. Isolation bar activated safety system. Loader arm safety strut. Centrifugal dry type engine air filter with safety element. Standard shovel. Mechanical quickhitch. Hand throttle. Worklights (EC only). Servo emergency lower valve. Fuel gauge. Oil immersed fail safe hydraulic park brake.

Optional equipment

Fully glazed cab with heater/demister. Air conditioning. Road lights. Work lights (not EC). Reverse alarm. Beacon. Foot throttle (not with foot control format). Fire extinguisher. Toolkit. Self levelling lift. Float. Level 2 FOPS guard. Heavy-duty rear door guard. Front screen guard. Auxiliary hydraulics. Bolt on lift points. Battery isolator. Accessory socket. Backhoe mounting brackets. Tooth guard. Catalytic converter. 2 Speed transmission – 18kph. Wide core radiator. Fabric suspension seat. RH fender. Counterweight kit – increases operating capacity by 100kg. Wastemaster package. Custom paint.

Operator environment

Full ROPS and Level I FOPS, full audio and visual warning systems. Soundproofing gives noise levels complying with EC regulations. Safe access through side door – thanks to JCB’s unique single arm design. Unequalled all-round visibility. Fully adjustable suspension seat. Retractable seat belt fitted as standard. Drainage cover for easy cleaning of cab.

Hydraulics

In addition to the main hydrostatic drive pumps, there is a dedicated loader and attachments supply pump (the auxiliary hydraulics circuit is optional on all base models and standard on the high flow model). Pump flow: 80 litres / minute (17.6 gal/min) @ 2200 rpm engine speed. Main relief pressure: 225 bar (3263 psi). Low lever efforts give excellent and easy control of transmission loader and attachments. Auxiliary hydraulics are actuated via the right hand controller, giving progressive control of oil flow for precise attachment control. Hydraulic supply pipes run neatly on top of the loader arm under a protective guard for long life. Full flow, spin-on type hydraulic oil filter. JCB high performance hydraulic oil. The optional Hi-flow circuit provides 133 litres/min (29.2 gal./min) pump flow to the front of the machine for operation of high capacity attachments such as trenchers and patch planers.

Transmission

The full servo controlled hydrostatic transmission provides zero to maximum speed, both forward and reverse, at full power. It features independent transmission systems for both the left and right side, controlled through servo controls for precise and easy operation. The transmission power management system maintains full engine power availability, maximizing loader and attachment control. Additionally, the Creep Control option, standard on high flow, allows for precise attachment control. The travel speeds, both forward and reverse, are 11 kph (6.9 mph), with an optional 2-speed setting reaching 18 kph (11.2 mph).
