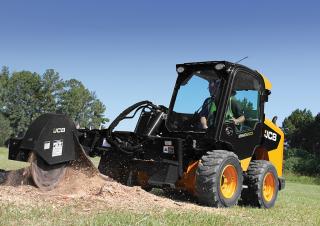

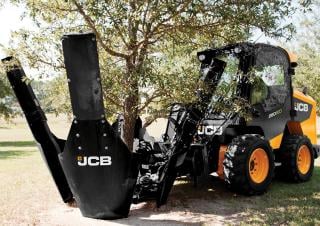

260 JCB 260 Specifications & Technical Data (2013—2017)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit JCB live at
.jpg){kind=logo}
Technical specs - 260 JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.73 t
- Rated operating capacity
- 1179 kg
- Standard tyres
- 12x16.5-10 PR
- Bucket width
- 1.82 m
- Bucket capacity
- 0.47 m³
- Driver protection
- KbR
- Steering mode
- AL
- Transport length
- 3.69 m
- Transport width
- 1.82 m
- Transport height
- 2.09 m
- Travel speed
- 10.9 km/h
- Max. discharge height
- 2.46 m
- Engine manuf.
- JCB
- Engine type
- EcoMax TCAE
- Engine power
- 55 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 1300 rpm
- Max. torque
- 400 Nm
- Cylinder bore x stroke
- 103x132 mm
More technical details, like: track width, lifting force, model series, dimension lxwxh, no. of cylinders, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
Download datasheets (PDF)
