215T JCB 215T Specifications & Technical Data (2017—2021)

The JCB 215T is a compact track loader manufactured by JCB from 2017 to 2021. It has a weight of 4.13 tons and a transport length …

The JCB 215T is a compact track loader manufactured by JCB from 2017 to 2021. It has a weight of 4.13 tons and a transport length of 3.49 meters. The bucket capacity is 0.4 cubic meters, with a bucket width of 1.68 meters. The maximum discharge height is 2.29 meters. It has a travel speed of 10 kilometers per hour. The transport width and height are both 1.68 meters. The lifting force is 22 kilonewtons, and the track width is 320 millimeters. It has a rated operating capacity of 1365 kilograms.

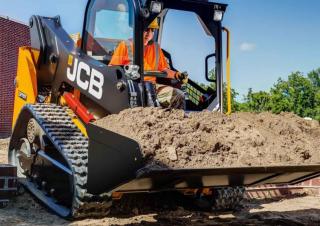

Skid Steer Loaders JCB 215T
Skid Steer Loaders JCB 215T
Skid Steer Loaders JCB 215T
Skid Steer Loaders JCB 215T
Skid Steer Loaders JCB 215T
Skid Steer Loaders JCB 215T

Visit JCB live at

Technical specs - 215T JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.13 t
Rated operating capacity
1365 kg
Track width
320 mm
Bucket width
1.68 m
Bucket capacity
0.4 m³
Driver protection
KbR
Transport length
3.49 m
Transport width
1.68 m
Transport height
2 m
Travel speed
10 km/h
Max. discharge height
2.29 m
Lifting force
22 kN
Engine manuf.
Kohler
Engine type
KDI2054TCR
Engine power
55 kW
Displacement
2.482 l
Revolutions at max torque
1500 rpm
Max. torque
300 Nm
No. of cylinders
4
Emission level
III B

More technical details, like: standard tyres, steering mode, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

JCB 215T FAQ

When was the JCB 215T skid steer loader manufactured?

The JCB 215T skid steer loader was manufactured from 2017 to 2021.

How much does the JCB 215T skid steer loader weigh?

The JCB 215T skid steer loader weighs 4.13 tons.

What are the transport dimensions of the JCB 215T skid steer loader?

The JCB 215T has a transport length of 3.49 meters, a transport width of 1.68 meters, and a transport height of 2 meters.

What is the travel speed of the JCB 215T skid steer loader?

The JCB 215T skid steer loader has a travel speed of 10 km/h.

What is the track width of the JCB 215T skid steer loader?

The JCB 215T skid steer loader has a track width of 320 mm.

What is the lifting force of the JCB 215T skid steer loader, and is its power rating available?

The JCB 215T skid steer loader has a lifting force of 22 kN. The source data does not provide information about its power rating.

What is the material handling capacity of the JCB 215T skid steer loader?

The JCB 215T skid steer loader has a rated operating capacity of 1365 kg and a maximum discharge height of 2.29 meters.

What are the specifications of the primary work tool on the JCB 215T skid steer loader?

The primary work tool of the JCB 215T skid steer loader has a bucket capacity of 0.4 cubic meters and a bucket width of 1.68 meters.

What operator safety and support features does the JCB 215T have?

The JCB 215T features a cabin with ROPS for driver protection.

How much is a JCB 215T Skid steer loader (2017u20132021) worth?

The residual value of the JCB 215T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
