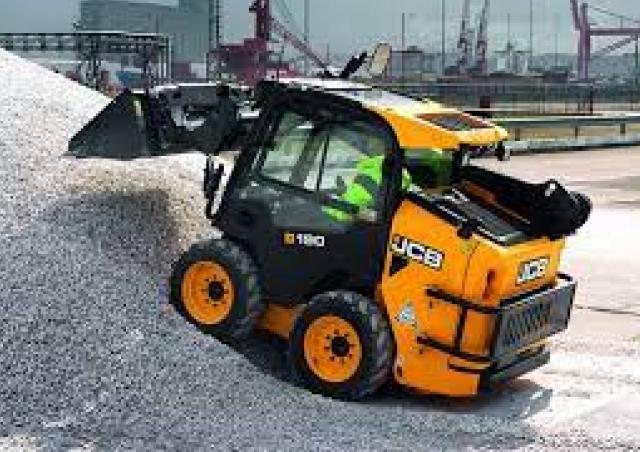

190T JCB 190T Specifications & Technical Data (2011—2012)

The JCB 190T Skid Steer Loader, manufactured from 2011 to 2012, weighs 3.72 tons and has a transport length of 3.53 meters. It fea…

The JCB 190T Skid Steer Loader, manufactured from 2011 to 2012, weighs 3.72 tons and has a transport length of 3.53 meters. It features a bucket width of 1.73 meters and a maximum discharge height of 2.29 meters. With a travel speed of 10 km/h, it has a transport width of 1.68 meters and a transport height of 2 meters. The track width measures 320 mm, and it has a rated operating capacity of 862 kg.

Skid Steer Loaders JCB 190T

Visit JCB live at

Technical specs - 190T JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.72 t
Rated operating capacity
862 kg
Track width
320 mm
Bucket width
1.73 m
Driver protection
KbR
Transport length
3.53 m
Transport width
1.68 m
Transport height
2 m
Travel speed
10 km/h
Max. discharge height
2.29 m
Engine manuf.
Perkins
Engine type
404D-22T
Engine power
44.7 kW
Displacement
2.2 l
Revolutions at max torque
2800 rpm

More technical details, like: standard tyres, bucket capacity, steering mode, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, lift geometry...

More technical details, like: standard tyres, bucket capacity, steering mode, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, lift geometry, access, suspension seat, telematics available, platform, security system available, engine manufacturer, engine model, number of cylinders, aspiration, rated speed, engine output - gross, rated speed - torque, torque, transmission type, drive method, track shoe width, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, heaped capacity, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, hydraulic power, hydraulic power - option, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

JCB 190T FAQ

When was the JCB 190T manufactured?

The JCB 190T was manufactured from 2011 to 2012.

How much does the JCB 190T skid steer loader weigh?

The JCB 190T skid steer loader weighs 3.72 tons.

What are the transport dimensions of the JCB 190T skid steer loader?

The JCB 190T has a transport length of 3.53 meters, a transport width of 1.68 meters, and a transport height of 2 meters.

What is the travel speed of the JCB 190T skid steer loader?

The JCB 190T has a travel speed of 10 km/h.

What is the track width of the JCB 190T skid steer loader?

The JCB 190T skid steer loader has a track width of 320 mm.

What is the material handling capacity of the JCB 190T skid steer loader?

The JCB 190T skid steer loader has a rated operating capacity of 862 kilograms.

What is the bucket width of the JCB 190T skid steer loader?

The bucket width of the JCB 190T skid steer loader is 1.73 meters.

What operator safety features does the JCB 190T skid steer loader have?

The JCB 190T skid steer loader features a cabin with ROPS for driver protection.

How much is a JCB 190T Skid steer loader (2011u20132012) worth?

The residual value of the JCB 190T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
