155 JCB 155 Specifications & Technical Data (2013—2021)

The JCB 155 is a skid steer loader manufactured by JCB from 2013 to 2021. It has a weight of 2.95 tons and a transport length of 3…

The JCB 155 is a skid steer loader manufactured by JCB from 2013 to 2021. It has a weight of 2.95 tons and a transport length of 3.49 meters. The bucket capacity is 0.4 cubic meters, with a bucket width of 1.68 meters. The maximum discharge height is 2.26 meters, and it has a travel speed of 12 km/h. The transport width is 1.52 meters, and the transport height is 1.98 meters. The lifting force is 17.85 kilonewtons, and the rated operating capacity is 703 kilograms.

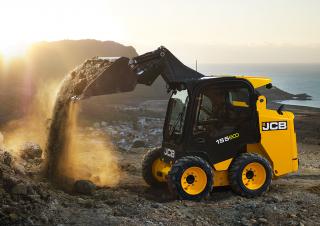

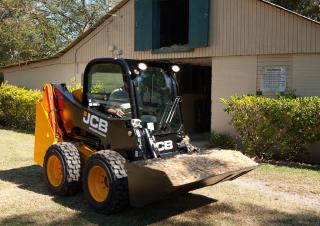

Skid Steer Loaders JCB 155
Skid Steer Loaders JCB 155
Skid Steer Loaders JCB 155
Skid Steer Loaders JCB 155
Skid Steer Loaders JCB 155
Skid Steer Loaders JCB 155

Visit JCB live at

Technical specs - 155 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.95 t
Rated operating capacity
703 kg
Standard tyres
10x16.5-8 PR
Bucket width
1.68 m
Bucket capacity
0.4 m³
Driver protection
KbR
Steering mode
AL
Transport length
3.49 m
Transport width
1.52 m
Transport height
1.98 m
Travel speed
12 km/h
Max. discharge height
2.26 m
Lifting force
17.85 kN
Engine manuf.
Kohler
Engine type
KDI1903TCR
Engine power
42 kW
Dimension lxwxh
598.3x530x726 mm
Displacement
1.86 l
Revolutions at max torque
1500 rpm
Max. torque
225 Nm
No. of cylinders
3
Cylinder bore x stroke
88x102 mm
Emission level
IIIB/T4f

More technical details, like: track width, model series, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, security system available, engine manufacturer, engine model, emission rating, aspiration...

More technical details, like: track width, model series, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, security system available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, torque, transmission type, drive chain rating [ansi], tyre size, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, hydraulic power, hydraulic power - option, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

JCB 155 FAQ

When was the JCB 155 skid steer loader manufactured?

The JCB 155 skid steer loader was manufactured from 2013 to 2021.

How much does the JCB 155 skid steer loader weigh?

The JCB 155 skid steer loader weighs 2.95 tons.

What are the transport dimensions of the JCB 155 skid steer loader?

The JCB 155 skid steer loader has a transport length of 3.49 meters, a transport width of 1.52 meters, and a transport height of 1.98 meters.

What is the travel speed of the JCB 155 skid steer loader?

The JCB 155 skid steer loader has a travel speed of 12 km/h.

What are the undercarriage specifications of the JCB 155 skid steer loader?

The JCB 155 skid steer loader is equipped with standard tyres sized 10x16.5-8 PR.

What is the steering mode of the JCB 155 skid steer loader?

The JCB 155 skid steer loader features an all-wheel steering mode.

What is the lifting force of the JCB 155 skid steer loader?

The JCB 155 skid steer loader has a lifting force of 17.85 kN. No power rating data is provided in the source information.

What is the material handling capacity of the JCB 155 skid steer loader?

The JCB 155 skid steer loader has a rated operating capacity of 703 kilograms.

What are the specifications of the primary work tool bucket on the JCB 155 skid steer loader?

The primary work tool bucket of the JCB 155 skid steer loader has a capacity of 0.4 cubic meters and a width of 1.68 meters.

What operator safety and support features does the JCB 155 skid steer loader have?

The JCB 155 skid steer loader features driver protection with a cabin equipped with ROPS (Roll Over Protective Structure).

How much is a JCB 155 Skid steer loader (2013u20132021) worth?

The residual value of the JCB 155 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
