150T JCB 150T Specifications & Technical Data (2013—2020)

The JCB 150T Skid Steer Loader, manufactured from 2013 to 2020, weighs 3.69 tons and has a transport length of 3.49 meters. It is …

The JCB 150T Skid Steer Loader, manufactured from 2013 to 2020, weighs 3.69 tons and has a transport length of 3.49 meters. It is equipped with a 0.4 cubic meter bucket with a width of 1.68 meters. The maximum discharge height is 2.29 meters, and it can travel at a speed of 10 km/h. The transport width and height are both 1.68 and 2 meters respectively. With a lifting force of 17.85 kN, it has a track width of 320 mm. The rated operating capacity of this construction machine is 680 kg.

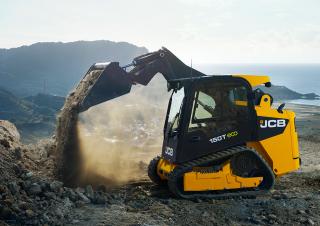

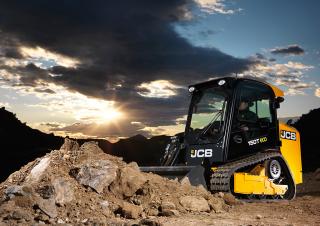

Skid Steer Loaders JCB 150T
Skid Steer Loaders JCB 150T
Skid Steer Loaders JCB 150T
Skid Steer Loaders JCB 150T

Visit JCB live at

Technical specs - 150T JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.69 t
Rated operating capacity
680 kg
Track width
320 mm
Bucket width
1.68 m
Bucket capacity
0.4 m³
Driver protection
KbR
Transport length
3.49 m
Transport width
1.68 m
Transport height
2 m
Travel speed
10 km/h
Max. discharge height
2.29 m
Lifting force
17.85 kN
Engine manuf.
Kohler
Engine type
KDI1903TCR
Engine power
42 kW
Dimension lxwxh
598.3x530x726 mm
Displacement
1.86 l
Revolutions at max torque
1500 rpm
Max. torque
225 Nm
No. of cylinders
3
Cylinder bore x stroke
88x102 mm
Emission level
IIIB/T4f

More technical details, like: standard tyres, steering mode, model series, undercarriage type, lift geometry, access, suspension seat, telematics available, security system available, engine manufacturer, engine model, emission rating...

More technical details, like: standard tyres, steering mode, model series, undercarriage type, lift geometry, access, suspension seat, telematics available, security system available, engine manufacturer, engine model, emission rating, number of cylinders, aspiration, rated speed, engine output - net, engine output - gross, rated speed - torque, torque, transmission type, drive method, track rollers, track shoe width, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, hydraulic power, hydraulic power - option, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

JCB 150T FAQ

When was the JCB 150T skid steer loader manufactured?

The JCB 150T skid steer loader was manufactured from 2013 to 2020.

How much does the JCB 150T skid steer loader weigh?

The JCB 150T skid steer loader weighs 3.69 tons.

What are the transport dimensions of the JCB 150T skid steer loader?

The JCB 150T skid steer loader has a transport length of 3.49 meters, a transport width of 1.68 meters, and a transport height of 2 meters.

What is the travel speed of the JCB 150T skid steer loader?

The JCB 150T skid steer loader has a travel speed of 10 km/h.

What is the track width of the JCB 150T skid steer loader?

The JCB 150T skid steer loader has a track width of 320 mm.

What is the lifting force of the JCB 150T skid steer loader, given that power ratings are not provided?

The JCB 150T skid steer loader has a lifting force of 17.85 kN. The source data does not provide any power rating information.

What is the material handling capacity of the JCB 150T skid steer loader?

The JCB 150T skid steer loader has a rated operating capacity of 680 kilograms.

What are the specifications of the primary work tool on the JCB 150T skid steer loader?

The JCB 150T skid steer loader has a bucket with a capacity of 0.4 cubic meters and a width of 1.68 meters.

What operator safety and support features does the JCB 150T skid steer loader have?

The JCB 150T skid steer loader features a cabin with ROPS for driver protection.

How much is a JCB 150T Skid steer loader (2013u20132020) worth?

The residual value of the JCB 150T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
