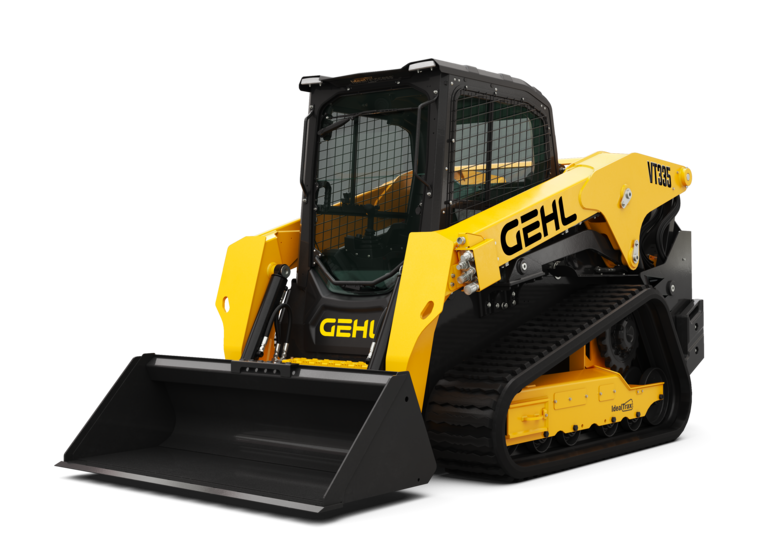

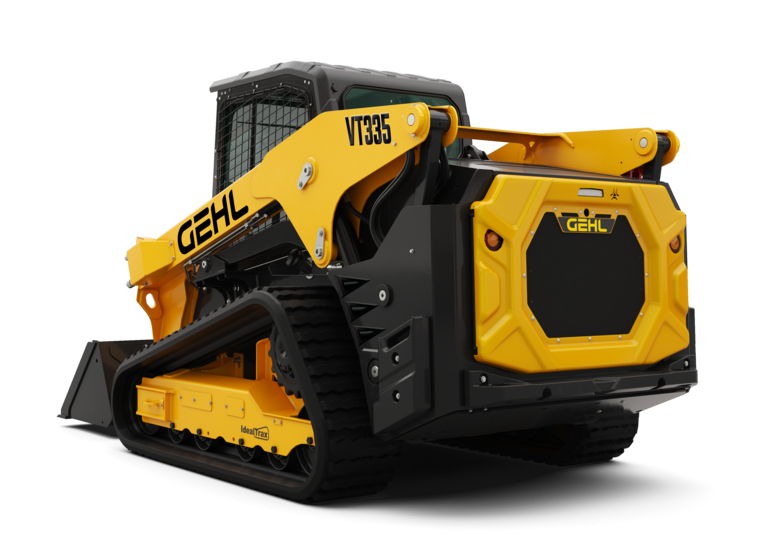

VT335 Gehl VT335 Specifications & Technical Data (2026—2026)

Weight: 5370t – Rated operating capacity: 1520kg – Track width: 457mm – Bucket width: 2.134m – Driver protection: KbR – Transport length: 3.124m

Technical specs - VT335 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5370 t
Rated operating capacity
1520 kg
Track width
457 mm
Bucket width
2.134 m
Driver protection
KbR
Transport length
3.124 m
Transport width
2.032 m
Transport height
2.134 m
Travel speed
9.66 km/h
Max. discharge height
2.667 m
Model series
VT
Engine manuf.
Deutz
Engine type
TCD3.6
Engine power
73.38 kW
No. of cylinders
4

More technical details, like: standard tyres, bucket capacity, steering mode, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth
