VT320 Gehl VT320 Specifications & Technical Data (2026—2026)

Weight: 5.352t – Rated operating capacity: 1452kg – Track width: 450mm – Bucket width: 2.131m – Driver protection: KbR – Transport length: 3.243m

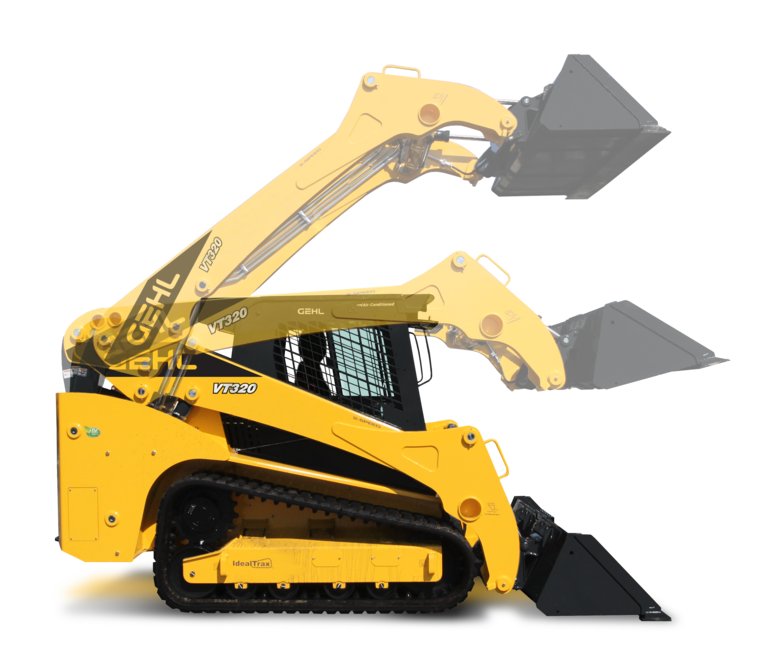

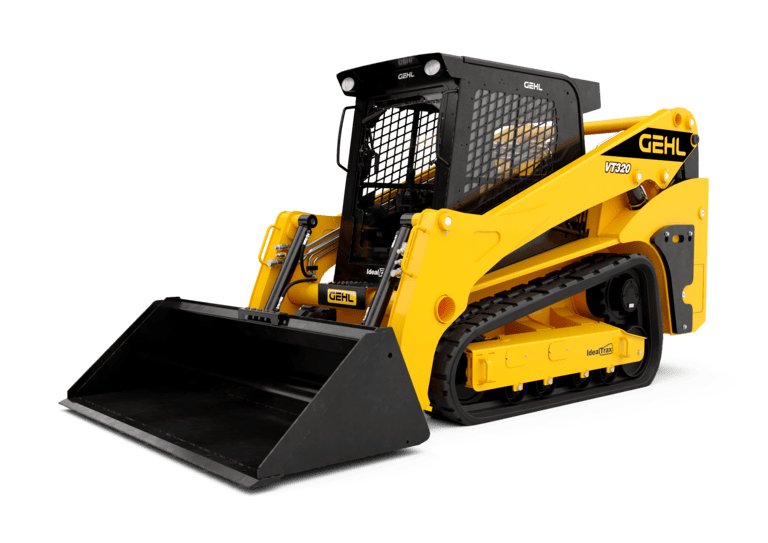

Skid Steer Loaders Gehl VT320
Skid Steer Loaders Gehl VT320
Skid Steer Loaders Gehl VT320
Skid Steer Loaders Gehl VT320

Technical specs - VT320 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.352 t
Rated operating capacity
1452 kg
Track width
450 mm
Bucket width
2.131 m
Driver protection
KbR
Transport length
3.243 m
Transport width
1.766 m
Transport height
2.111 m
Travel speed
8.6 km/h
Max. discharge height
2.53 m
Model series
VT
Engine manuf.
Deutz
Engine type
TD 3.6 EPA
Engine power
85 kW
No. of cylinders
4

More technical details, like: standard tyres, bucket capacity, steering mode, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No
