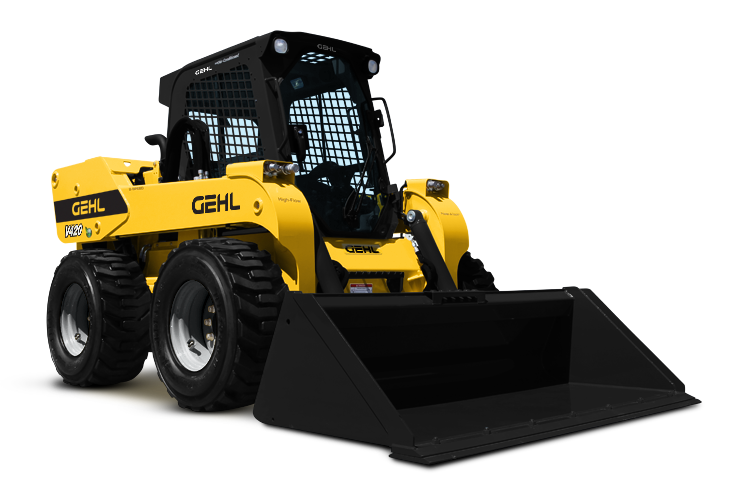

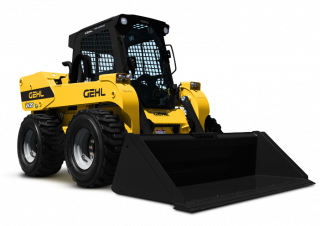

V420 Gehl V420 Specifications & Technical Data (2018—2026)
.jpg)
.jpg)
Technical specs - V420 Gehl
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 5.29 t
- Rated operating capacity
- 1905 kg
- Standard tyres
- 14.00-17.5 HD
- Bucket width
- 2.14 m
- Bucket capacity
- 0.87 m³
- Driver protection
- KbR
- Steering mode
- PL
- Transport length
- 4.02 m
- Transport width
- 2.019 m
- Transport height
- 2.083 m
- Travel speed
- 17.3 km/h
- Model series
- V
- Engine manuf.
- Deutz
- Engine type
- TCD 3.6
- Engine power
- 90 kW
- Displacement
- 3.6 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 480/1600 Nm
- No. of cylinders
- 4
- Emission level
- Tier IV
More technical details, like: track width, max. discharge height, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
Download datasheets (PDF)
