V400 Gehl V400 Specifications & Technical Data (2014—2016)

The Gehl V400 skid steer loader, manufactured from 2014 to 2016, has a weight of 5.03 tons and a transport length of 4.03 meters. …

The Gehl V400 skid steer loader, manufactured from 2014 to 2016, has a weight of 5.03 tons and a transport length of 4.03 meters. It features a bucket width of 2.01 meters and a maximum discharge height of 2.9 meters. With a travel speed of 18 km/h, it has a transport width of 2.02 meters and a transport height of 2.08 meters. The rated operating capacity of this construction machine is 1814 kilograms.

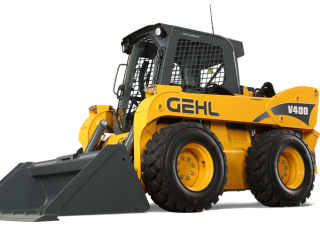

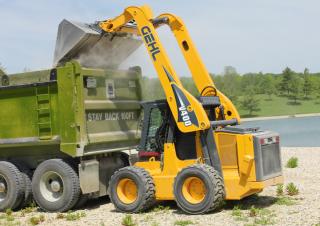

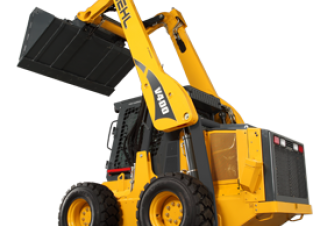

Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400
Skid Steer Loaders Gehl V400

Technical specs - V400 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.03 t
Rated operating capacity
1814 kg
Standard tyres
14.00x17.5
Bucket width
2.01 m
Driver protection
KbR
Steering mode
PL
Transport length
4.03 m
Transport width
2.02 m
Transport height
2.08 m
Travel speed
18 km/h
Max. discharge height
2.9 m
Model series
V
Engine manuf.
Cummins
Engine type
QSB4.5
Engine power
72 kW
Displacement
4.5 l
Revolutions at max torque
2200 rpm

More technical details, like: track width, bucket capacity, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, rating standard - rops, rating standard - fops...

More technical details, like: track width, bucket capacity, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, security system available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - gross, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, pump flow, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Gehl V400 FAQ

When was the Gehl V400 skid steer loader manufactured?

The Gehl V400 skid steer loader was manufactured from 2014 to 2016.

How much does the Gehl V400 skid steer loader weigh?

The Gehl V400 skid steer loader weighs 5.03 tons.

What are the transport dimensions of the Gehl V400 skid steer loader?

The Gehl V400 skid steer loader has a transport length of 4.03 meters, a transport width of 2.02 meters, and a transport height of 2.08 meters.

What is the travel speed of the Gehl V400 skid steer loader?

The Gehl V400 skid steer loader has a travel speed of 18 km/h.

What is the standard tyre size of the Gehl V400 skid steer loader?

The Gehl V400 skid steer loader is equipped with standard tyres sized 14.00x17.5.

What is the steering mode of the Gehl V400 skid steer loader?

The Gehl V400 skid steer loader has a steering mode of tank steering.

What is the material handling capacity of the Gehl V400 skid steer loader?

The Gehl V400 skid steer loader has a rated operating capacity of 1814 kg.

What is the bucket width of the Gehl V400 skid steer loader?

The Gehl V400 skid steer loader has a bucket width of 2.01 meters.

What operator safety and support features does the Gehl V400 skid steer loader have?

The Gehl V400 skid steer loader features a cabin with ROPS for driver protection.
