V330 Gehl V330 Specifications & Technical Data (2018—2026)

The Gehl V330 Skid Steer Loader, manufactured since 2018, has a weight of 4.12 tons and a transport length of 3.87 meters. It is e…

The Gehl V330 Skid Steer Loader, manufactured since 2018, has a weight of 4.12 tons and a transport length of 3.87 meters. It is equipped with a bucket capacity of 0.75 cubic meters and a bucket width of 1.88 meters. The maximum discharge height is 2.5 meters, and it can travel at a speed of 13 km/h. With a transport width of 1.83 meters and a transport height of 2.08 meters, it offers a rated operating capacity of 1497 kilograms.

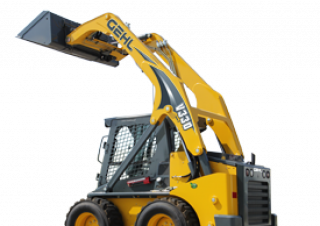

Skid Steer Loaders Gehl V330
Skid Steer Loaders Gehl V330
Skid Steer Loaders Gehl V330
Skid Steer Loaders Gehl V330
Skid Steer Loaders Gehl V330
Skid Steer Loaders Gehl V330

Technical specs - V330 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.12 t
Rated operating capacity
1497 kg
Standard tyres
14.00x17.5 HD
Bucket width
1.88 m
Bucket capacity
0.75 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.87 m
Transport width
1.83 m
Transport height
2.08 m
Travel speed
13 km/h
Max. discharge height
2.5 m
Model series
V
Engine manuf.
Yanmar
Engine type
4TNV98C-NMS
Engine power
53.7 kW
Displacement
3.3 l
Revolutions at max torque
2500 rpm
Max. torque
294/1625 Nm
No. of cylinders
4
Emission level
Tier IV

More technical details, like: track width, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Gehl V330 FAQ

When was the Gehl V330 manufactured?

The Gehl V330 was first produced in 2018.

How much does the Gehl V330 skid steer loader weigh?

The Gehl V330 skid steer loader weighs 4.12 tons.

What are the transport dimensions of the Gehl V330 skid steer loader?

The Gehl V330 has a transport length of 3.87 meters, a transport width of 1.83 meters, and a transport height of 2.08 meters.

What is the travel speed of the Gehl V330 skid steer loader?

The Gehl V330 skid steer loader has a travel speed of 13 km/h.

What are the undercarriage specifications of the Gehl V330 skid steer loader?

The Gehl V330 skid steer loader is equipped with standard tyres sized 14.00x17.5 HD.

What is the steering mode of the Gehl V330 skid steer loader?

The Gehl V330 skid steer loader has a steering mode of tank steering.

What is the material handling capacity of the Gehl V330 skid steer loader?

The Gehl V330 skid steer loader has a rated operating capacity of 1497 kg and a maximum discharge height of 2.5 meters.

What are the specifications of the primary work tool on the Gehl V330 skid steer loader?

The Gehl V330 skid steer loader has a bucket with a capacity of 0.75 cubic meters and a width of 1.88 meters.

What operator safety features does the Gehl V330 skid steer loader have?

The Gehl V330 skid steer loader features a cabin with ROPS for driver protection.

How much is a Gehl V330 Skid steer loader (2018u20132025) worth?

The residual value of the Gehl V330 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
