RT185 Gehl RT185 Specifications & Technical Data (2018—2026)

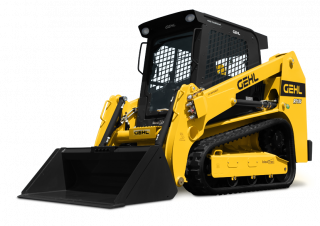

The Gehl RT185 is a skid steer loader manufactured by Gehl since 2018. It has a weight of 2.8 tons and a transport length of 3.1 m…

The Gehl RT185 is a skid steer loader manufactured by Gehl since 2018. It has a weight of 2.8 tons and a transport length of 3.1 meters. The bucket capacity is 0.67 cubic meters, with a bucket width of 1.68 meters. The maximum discharge height is 2.38 meters, and it has a travel speed of 12.6 km/h. The transport width is 1.6 meters, and the transport height is 1.95 meters. The rated operating capacity is 748 kilograms.

Skid Steer Loaders Gehl RT185

Technical specs - RT185 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.8 t
Rated operating capacity
748 kg
Standard tyres
10.00 x 16.5
Bucket width
1.68 m
Bucket capacity
0.67 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.1 m
Transport width
1.6 m
Transport height
1.95 m
Travel speed
12.6 km/h
Max. discharge height
2.38 m
Model series
RT
Engine manuf.
Yanmar
Engine type
4TNV88C-KMS
Engine power
51 kW
Displacement
3.3 l
Revolutions at max torque
2500 rpm
Max. torque
241/1625 Nm
No. of cylinders
4
Emission level
Tier IV

More technical details, like: track width, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Gehl RT185 FAQ

When was the Gehl RT185 manufactured?

The Gehl RT185 was first produced in 2018.

How much does the Gehl RT185 skid steer loader weigh?

The Gehl RT185 skid steer loader weighs 2.8 tons.

What are the transport dimensions of the Gehl RT185 skid steer loader?

The Gehl RT185 skid steer loader has a transport length of 3.1 meters, a transport width of 1.6 meters, and a transport height of 1.95 meters.

What is the travel speed of the Gehl RT185 skid steer loader?

The Gehl RT185 has a travel speed of 12.6 km/h.

What is the standard tyre size of the Gehl RT185 skid steer loader?

The Gehl RT185 skid steer loader has standard tyres sized 10.00 x 16.5.

What is the steering mode of the Gehl RT185 skid steer loader?

The Gehl RT185 skid steer loader uses tank steering mode.

What is the material handling capacity of the Gehl RT185 skid steer loader?

The Gehl RT185 skid steer loader has a rated operating capacity of 748 kg and a maximum discharge height of 2.38 meters.

What are the bucket specifications of the Gehl RT185 skid steer loader?

The Gehl RT185 skid steer loader has a bucket capacity of 0.67 cubic meters and a bucket width of 1.68 meters.

What operator safety and support features does the Gehl RT185 have?

The Gehl RT185 is equipped with a cabin that includes ROPS (Roll Over Protective Structure) for driver protection.

How much is a Gehl RT185 Skid steer loader (2018u20132025) worth?

The residual value of the Gehl RT185 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
