RT175 Gehl RT175 Specifications & Technical Data (2018—2021)

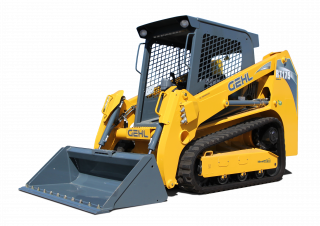

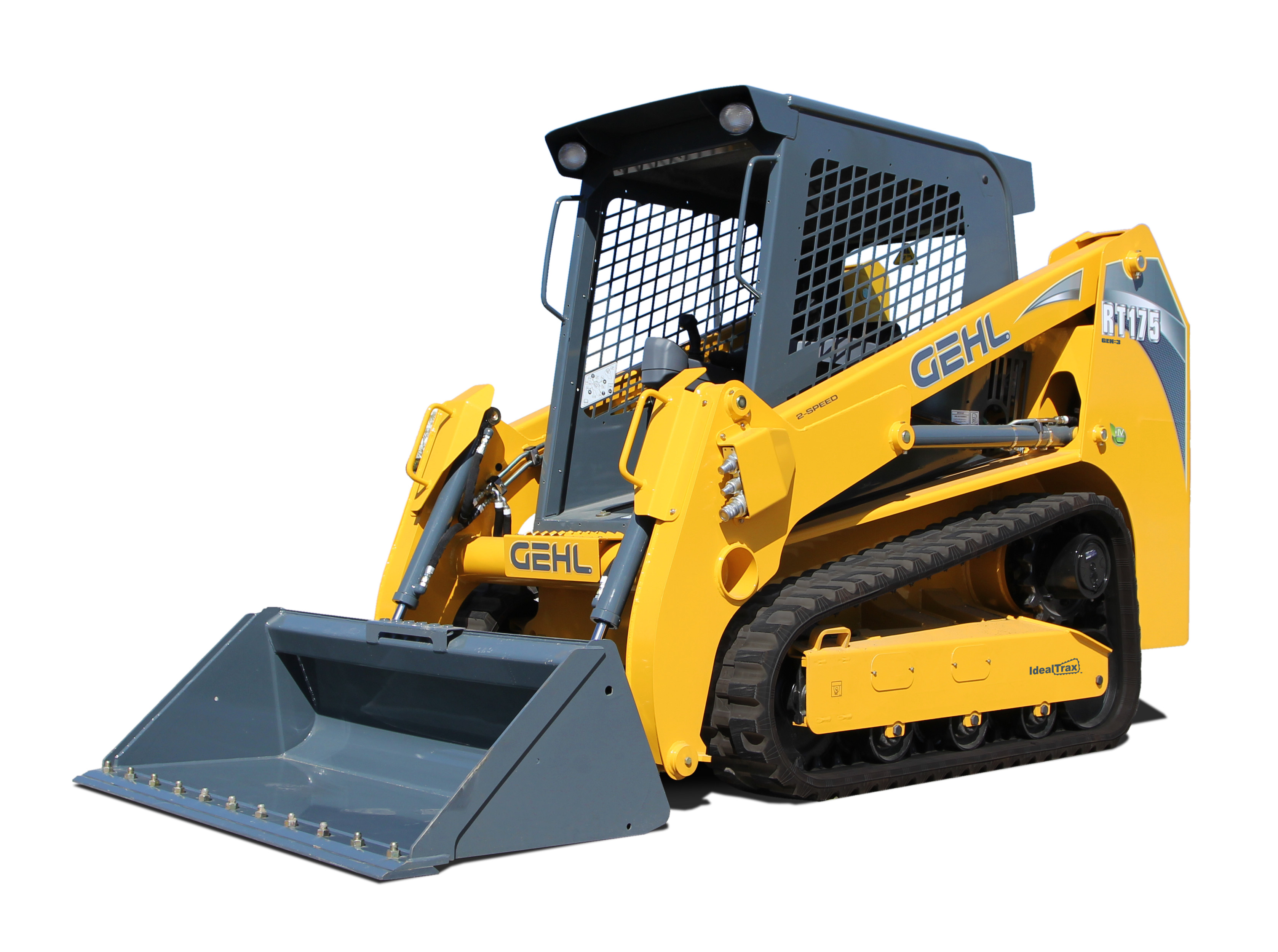

The Gehl RT175 is a skid steer loader manufactured by Gehl from 2018 to 2021. It has a weight of 3.9 tons and a transport length o…

The Gehl RT175 is a skid steer loader manufactured by Gehl from 2018 to 2021. It has a weight of 3.9 tons and a transport length of 3.66 meters. The bucket capacity is 0.67 cubic meters, with a bucket width of 1.68 meters. The maximum discharge height is 2.49 meters, and it has a travel speed of 12.4 km/h. The transport width is 1.68 meters, and the transport height is 2.1 meters. The rated operating capacity is 320 kilograms.

Skid Steer Loaders Gehl RT175

Technical specs - RT175 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.9 t
Rated operating capacity
320 kg
Bucket width
1.68 m
Bucket capacity
0.67 m³
Driver protection
KbR
Steering mode
PL
Transport length
3.66 m
Transport width
1.68 m
Transport height
2.1 m
Travel speed
12.4 km/h
Max. discharge height
2.49 m
Model series
RT
Engine manuf.
Yanmar
Engine type
4TNV98C-NMS2
Engine power
51 kW
Displacement
3.3 l
Revolutions at max torque
1625 rpm
Max. torque
241 Nm
Emission level
Tier 4

More technical details, like: track width, standard tyres, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Gehl RT175 FAQ

When was the Gehl RT175 manufactured?

The Gehl RT175 was manufactured from 2018 to 2021.

How much does the Gehl RT175 skid steer loader weigh?

The Gehl RT175 skid steer loader weighs 3.9 tons.

What are the transport dimensions of the Gehl RT175 skid steer loader?

The Gehl RT175 has a transport length of 3.66 meters, a transport width of 1.68 meters, and a transport height of 2.1 meters.

What is the travel speed of the Gehl RT175 skid steer loader?

The Gehl RT175 has a travel speed of 12.4 km/h.

What is the steering mode of the Gehl RT175 skid steer loader?

The Gehl RT175 skid steer loader uses tank steering mode.

What is the material handling capacity of the Gehl RT175 skid steer loader?

The Gehl RT175 skid steer loader has a rated operating capacity of 320 kg and a maximum discharge height of 2.49 meters.

What are the specifications of the primary work tool bucket on the Gehl RT175 skid steer loader?

The primary work tool bucket of the Gehl RT175 has a capacity of 0.67 cubic meters and a width of 1.68 meters.

What operator safety and support features does the Gehl RT175 have?

The Gehl RT175 is equipped with a cabin that includes ROPS for driver protection.

How much is a Gehl RT175 Skid steer loader (2018u20132021) worth?

The residual value of the Gehl RT175 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
