5640E Gehl 5640E Specifications & Technical Data (2018—2021)

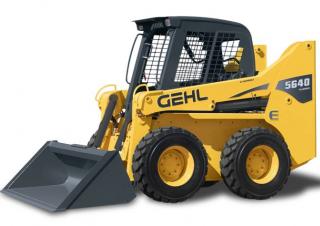

The Gehl 5640E is a skid steer loader manufactured by Gehl from 2018 to 2021. It has a weight of 3.38 tons and a transport length …

The Gehl 5640E is a skid steer loader manufactured by Gehl from 2018 to 2021. It has a weight of 3.38 tons and a transport length of 3.327 meters. The bucket width is 1.778 meters, and the maximum discharge height is 2.375 meters. The transport width is 1.778 meters, and the transport height is 2.057 meters. The rated operating capacity of this construction machine is 998 kilograms.

Skid Steer Loaders Gehl 5640E

Technical specs - 5640E Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.38 t
Rated operating capacity
998 kg
Bucket width
1.778 m
Driver protection
KbR
Steering mode
PL
Transport length
3.327 m
Transport width
1.778 m
Transport height
2.057 m
Max. discharge height
2.375 m
Model series
E
Engine manuf.
Yanmar
Engine type
4TNV98T
Engine power
53 kW
Displacement
3.31 l
Revolutions at max torque
1700 rpm
Max. torque
278 Nm
Emission level
Tier IV

More technical details, like: track width, standard tyres, bucket capacity, travel speed, lifting force, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Gehl 5640E FAQ

When was the Gehl 5640E manufactured?

The Gehl 5640E was manufactured from 2018 to 2021.

How much does the Gehl 5640E skid steer loader weigh?

The Gehl 5640E skid steer loader weighs 3.38 tons.

What are the transport dimensions of the Gehl 5640E skid steer loader?

The Gehl 5640E skid steer loader has a transport length of 3.33 meters, a transport width of 1.78 meters, and a transport height of 2.06 meters.

What is the steering mode of the Gehl 5640E skid steer loader?

The Gehl 5640E skid steer loader has a steering mode of tank steering.

What is the material handling capacity of the Gehl 5640E skid steer loader?

The Gehl 5640E skid steer loader has a rated operating capacity of 998 kg and a maximum discharge height of 2.38 meters.

What is the bucket width of the Gehl 5640E skid steer loader?

The Gehl 5640E skid steer loader has a bucket width of 1.78 meters.

What operator safety and support features does the Gehl 5640E have?

The Gehl 5640E is equipped with a cabin that includes ROPS for driver protection.

How much is a Gehl 5640E Skid steer loader (2018u20132021) worth?

The residual value of the Gehl 5640E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
