20 TL Eurocomach 20 TL Specifications & Technical Data (2016—2020)

The Eurocomach 20 TL is a skid steer loader manufactured from 2016 to 2020. It has a weight of 5.47 tons and a transport length of…

The Eurocomach 20 TL is a skid steer loader manufactured from 2016 to 2020. It has a weight of 5.47 tons and a transport length of 3.95 meters. The bucket capacity is 0.64 cubic meters with a width of 2.11 meters. The maximum discharge height is 2.42 meters. The transport width and height are both 2.11 and 2.18 meters respectively. The track width is 450 millimeters. It has a rated operating capacity of 2572 kilograms. Additionally, it is equipped with a burglar proof system and a diesel particulate filter.

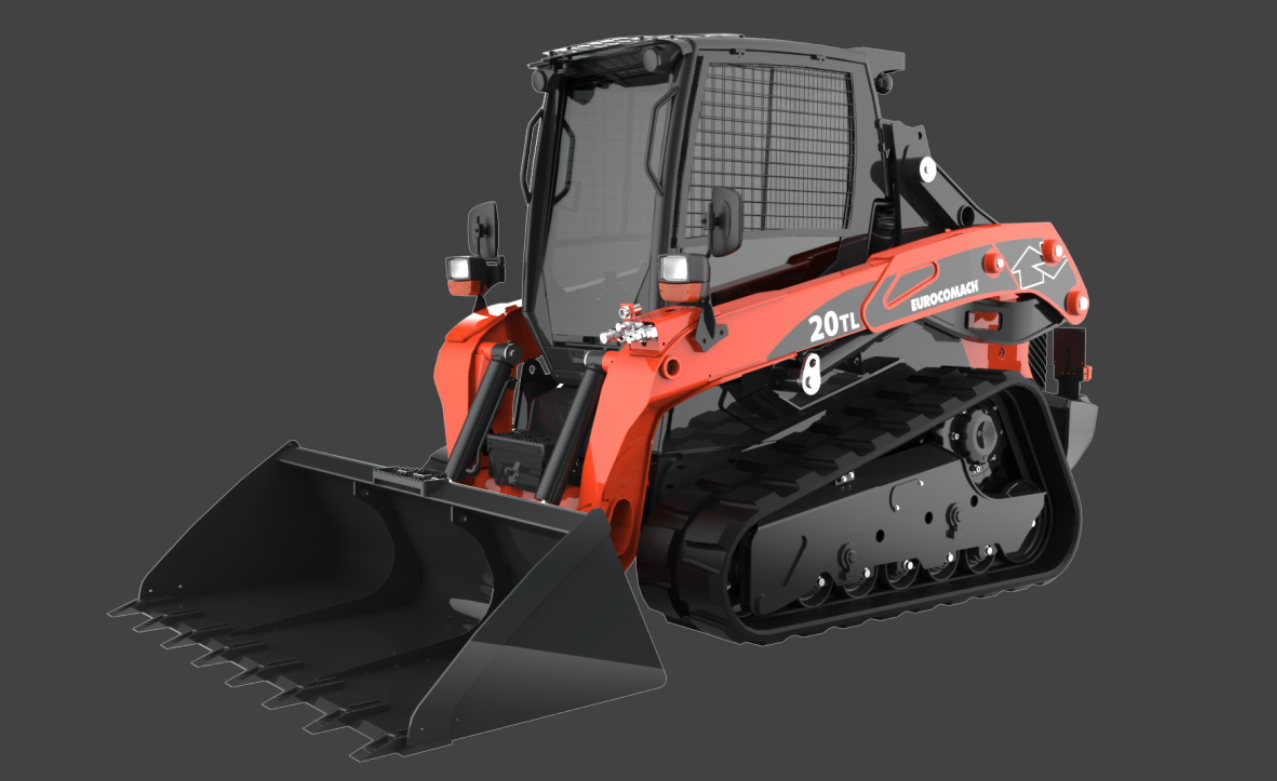

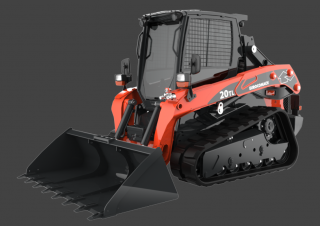

Skid Steer Loaders Eurocomach 20 TL

Technical specs - 20 TL Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.47 t
Rated operating capacity
2572 kg
Track width
450 mm
Bucket width
2.11 m
Bucket capacity
0.64 m³
Driver protection
KbR
Steering mode
AL
Transport length
3.95 m
Transport width
2.11 m
Transport height
2.18 m
Max. discharge height
2.42 m
Model series
CTL
Engine manuf.
Yanmar
Engine type
4TNV98CT
Engine power
53.7 kW
Displacement
3.319 l
Revolutions at max torque
1850 rpm
Max. torque
296.1 Nm
No. of cylinders
4
Emission level
Tier 4 i

More technical details, like: standard tyres, travel speed, lifting force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
Yes
LPG motor
No
Burglar proof system
Yes

Download datasheets (PDF)

Eurocomach 20 TL FAQ

When was the Eurocomach 20 TL manufactured?

The Eurocomach 20 TL was manufactured from 2016 to 2020.

How much does the Eurocomach 20 TL skid steer loader weigh?

The Eurocomach 20 TL skid steer loader weighs 5.47 tons.

What are the transport dimensions of the Eurocomach 20 TL skid steer loader?

The Eurocomach 20 TL has a transport length of 3.95 meters, a transport width of 2.11 meters, and a transport height of 2.18 meters.

What is the track width of the Eurocomach 20 TL's undercarriage?

The Eurocomach 20 TL has a track width of 450 mm.

What is the steering mode of the Eurocomach 20 TL skid steer loader?

The Eurocomach 20 TL skid steer loader has all-wheel steering.

What is the material handling capacity of the Eurocomach 20 TL skid steer loader?

The Eurocomach 20 TL has a rated operating capacity of 2572 kg and a maximum discharge height of 2.42 meters.

What are the bucket specifications of the Eurocomach 20 TL skid steer loader?

The Eurocomach 20 TL skid steer loader has a bucket capacity of 0.64 cubic meters and a bucket width of 2.11 meters.

What operator safety and support features does the Eurocomach 20 TL have?

The Eurocomach 20 TL is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Eurocomach 20 TL Skid steer loader (2016u20132020) worth?

The residual value of the Eurocomach 20 TL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
