285F Changlin 285F Specifications & Technical Data (2017—2026)

The Changlin 285F is a skid steer loader manufactured by Changlin since 2017. It has a weight of 3.77 tons and a transport length …

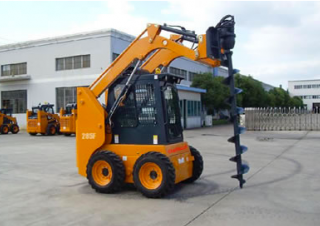

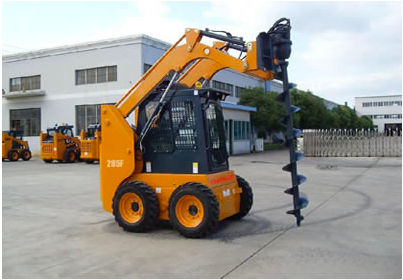

The Changlin 285F is a skid steer loader manufactured by Changlin since 2017. It has a weight of 3.77 tons and a transport length of 3.688 meters. The bucket capacity is 0.56 cubic meters, and the maximum discharge height is 2.543 meters. The transport width is 1.88 meters, and the transport height is 2.023 meters. The rated operating capacity is 1050 kilograms. This construction machine is equipped with a special LPG motor.

Skid Steer Loaders Changlin 285F

Technical specs - 285F Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.77 t
Rated operating capacity
1050 kg
Bucket capacity
0.56 m³
Transport length
3.688 m
Transport width
1.88 m
Transport height
2.023 m
Max. discharge height
2.543 m
Model series
F
Engine manuf.
Mitsubishi
Engine type
N/A
Engine power
62 kW

More technical details, like: track width, standard tyres, bucket width, driver protection, steering mode, travel speed, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders...

More technical details, like: track width, standard tyres, bucket width, driver protection, steering mode, travel speed, lifting force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
Yes
Burglar proof system
No

Changlin 285F FAQ

When was the Changlin 285F skid steer loader manufactured?

The Changlin 285F skid steer loader was first produced in 2017.

How much does the Changlin 285F skid steer loader weigh?

The Changlin 285F skid steer loader weighs 3.77 tons.

What are the transport dimensions of the Changlin 285F skid steer loader?

The Changlin 285F has a transport length of 3.69 meters, a transport width of 1.88 meters, and a transport height of 2.02 meters.

What is the material handling capacity of the Changlin 285F skid steer loader?

The Changlin 285F skid steer loader has a rated operating capacity of 1050 kg and a maximum discharge height of 2.54 meters.

What is the bucket capacity of the Changlin 285F skid steer loader?

The bucket capacity of the Changlin 285F skid steer loader is 0.56 cubic meters.
