275 Changlin 275 Specifications & Technical Data (2017—2026)

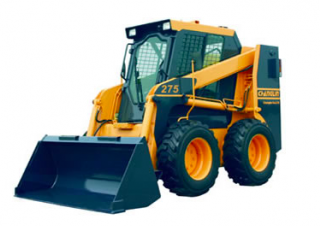

The Changlin 275 is a skid steer loader manufactured by Changlin since 2017. It has a weight of 3.5 tons and a transport length of…

The Changlin 275 is a skid steer loader manufactured by Changlin since 2017. It has a weight of 3.5 tons and a transport length of 3.55 meters. The bucket capacity is 0.53 cubic meters, with a bucket width of 1.89 meters. The maximum discharge height is 2.326 meters. It has a travel speed of 12 kilometers per hour. The transport width is 1.8 meters, and the transport height is 2.02 meters. It has a lifting force of 27 kilonewtons and a rated operating capacity of 950 kilograms. This construction machine is equipped with a special LPG motor.

Skid Steer Loaders Changlin 275

Technical specs - 275 Changlin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.5 t
Rated operating capacity
950 kg
Standard tyres
12-16.5NHS-10PRL-2B
Bucket width
1.89 m
Bucket capacity
0.53 m³
Transport length
3.55 m
Transport width
1.8 m
Transport height
2.02 m
Travel speed
12 km/h
Max. discharge height
2.326 m
Lifting force
27 kN
Engine manuf.
Perkins
Engine type
804D-33T
Engine power
55 kW
Displacement
3.3 l
Revolutions at max torque
1600 rpm
Max. torque
245 Nm
No. of cylinders
4
Cylinder bore x stroke
94x120 mm

More technical details, like: track width, driver protection, steering mode, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
Yes
Burglar proof system
No

Changlin 275 FAQ

When was the Changlin 275 manufactured?

The Changlin 275 was first produced in 2017.

How much does the Changlin 275 skid steer loader weigh?

The Changlin 275 skid steer loader weighs 3.5 tons.

What are the transport dimensions of the Changlin 275 skid steer loader?

The Changlin 275 skid steer loader has a transport length of 3.55 meters, a transport width of 1.8 meters, and a transport height of 2.02 meters.

What is the travel speed of the Changlin 275 skid steer loader?

The Changlin 275 skid steer loader has a travel speed of 12 km/h.

What are the undercarriage tyre specifications of the Changlin 275 skid steer loader?

The Changlin 275 skid steer loader is equipped with standard tyres sized 12-16.5NHS-10PRL-2B.

What is the lifting force of the Changlin 275 skid steer loader?

The Changlin 275 skid steer loader has a lifting force of 27 kN.

What is the material handling capacity of the Changlin 275 skid steer loader?

The Changlin 275 skid steer loader has a rated operating capacity of 950 kg and a maximum discharge height of 2.33 meters.

What are the specifications of the primary work tool bucket on the Changlin 275 skid steer loader?

The primary work tool bucket of the Changlin 275 has a capacity of 0.53 cubic meters and a width of 1.89 meters.
