299D 2 XHP Caterpillar 299D 2 XHP Specifications & Technical Data (2016—2019)

The Caterpillar 299D 2 XHP is a skid steer loader manufactured from 2016 to 2019. It has a weight of 5.26 tons and a transport len…

The Caterpillar 299D 2 XHP is a skid steer loader manufactured from 2016 to 2019. It has a weight of 5.26 tons and a transport length of 3.93 meters. The bucket capacity is 0.63 cubic meters with a width of 2.13 meters. The maximum discharge height is 2.4 meters. It has a travel speed of 13.5 km/h and a transport width of 1.98 meters. The transport height is 2.12 meters and the track width is 400 mm. The rated operating capacity is 2257 kg.

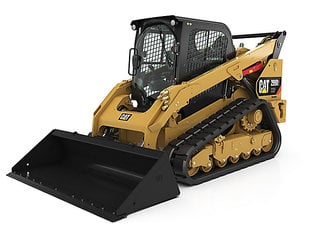

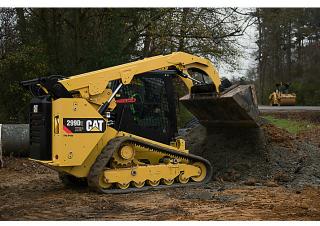

Skid Steer Loaders Caterpillar 299D 2 XHP
Skid Steer Loaders Caterpillar 299D 2 XHP
Skid Steer Loaders Caterpillar 299D 2 XHP
Skid Steer Loaders Caterpillar 299D 2 XHP
Skid Steer Loaders Caterpillar 299D 2 XHP
Skid Steer Loaders Caterpillar 299D 2 XHP

Technical specs - 299D 2 XHP Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.26 t
Rated operating capacity
2257 kg
Track width
400 mm
Bucket width
2.13 m
Bucket capacity
0.63 m³
Driver protection
Kb
Transport length
3.93 m
Transport width
1.98 m
Transport height
2.12 m
Travel speed
13.5 km/h
Max. discharge height
2.4 m
Model series
XHP
Engine manuf.
Caterpillar
Engine type
C3.8 DIT
Engine power
79 kW
Displacement
3.8 l
Revolutions at max torque
1500 rpm
Max. torque
374 Nm
Cylinder bore x stroke
100 x 120 mm
Emission level
Tier 4 f. Stage IV

More technical details, like: standard tyres, steering mode, lifting force, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 299D 2 XHP FAQ

When was the Caterpillar 299D 2 XHP manufactured?

The Caterpillar 299D 2 XHP was manufactured from 2016 to 2019.

How much does the Caterpillar 299D 2 XHP skid steer loader weigh?

The Caterpillar 299D 2 XHP skid steer loader weighs 5.26 tons.

What are the transport dimensions of the Caterpillar 299D 2 XHP skid steer loader?

The Caterpillar 299D 2 XHP has a transport length of 3.93 meters, a transport width of 1.98 meters, and a transport height of 2.12 meters.

What is the travel speed of the Caterpillar 299D 2 XHP skid steer loader?

The Caterpillar 299D 2 XHP has a travel speed of 13.5 km/h.

What is the track width of the Caterpillar 299D 2 XHP skid steer loader?

The Caterpillar 299D 2 XHP skid steer loader has a track width of 400 mm.

What is the material handling capacity of the Caterpillar 299D 2 XHP skid steer loader?

The Caterpillar 299D 2 XHP has a rated operating capacity of 2257 kg and a maximum discharge height of 2.4 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 299D 2 XHP?

The primary work tool bucket of the Caterpillar 299D 2 XHP has a capacity of 0.63 cubic meters and a width of 2.13 meters.

What driver protection feature does the Caterpillar 299D 2 XHP have?

The Caterpillar 299D 2 XHP has a driver protection cabin.

How much is a Caterpillar 299D 2 XHP Skid steer loader (2016u20132019) worth?

The residual value of the Caterpillar 299D 2 XHP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 299D 2 XHP overview

Hydraulics

Air Conditioning System

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant, which has a CO2 equivalent of 1.158 metric tonnes.
