297D2 Caterpillar 297D2 Specifications & Technical Data (2017—2019)

The Caterpillar 297D2 is a skid steer loader manufactured by Caterpillar from 2017 to 2019. It has a weight of 4.85 tons and a tra…

The Caterpillar 297D2 is a skid steer loader manufactured by Caterpillar from 2017 to 2019. It has a weight of 4.85 tons and a transport length of 3.942 meters. The bucket width is 1.981 meters, and the maximum discharge height is 2.445 meters. It has a travel speed of 15.1 km/h, with a transport width of 1.984 meters and a transport height of 2.114 meters. The track width is 457 millimeters, and the rated operating capacity is 2250 kilograms.

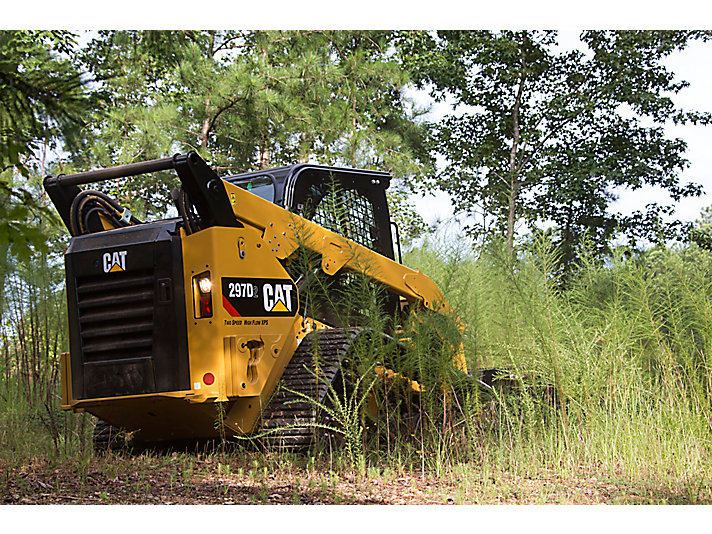

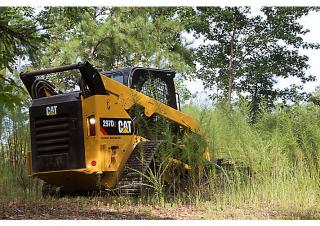

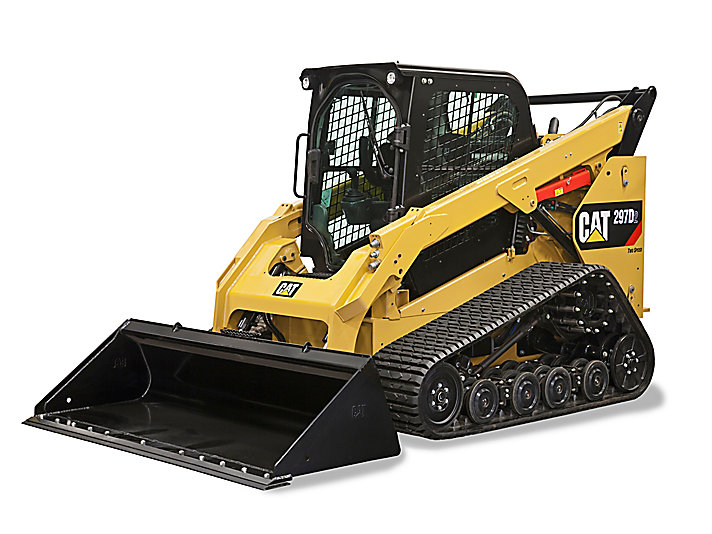

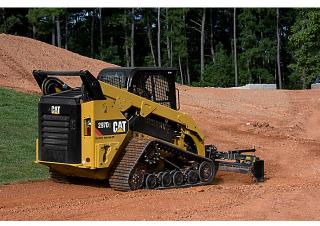

Skid Steer Loaders Caterpillar 297D2
Skid Steer Loaders Caterpillar 297D2
Skid Steer Loaders Caterpillar 297D2
Skid Steer Loaders Caterpillar 297D2
Skid Steer Loaders Caterpillar 297D2
Skid Steer Loaders Caterpillar 297D2

Technical specs - 297D2 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.85 t
Rated operating capacity
2250 kg
Track width
457 mm
Bucket width
1.981 m
Driver protection
KbR
Transport length
3.942 m
Transport width
1.984 m
Transport height
2.114 m
Travel speed
15.1 km/h
Max. discharge height
2.445 m
Engine manuf.
Caterpillar
Engine type
C3.8 DIT
Engine power
71 kW
Displacement
3.8 l
Revolutions at max torque
1500 rpm
Max. torque
334 Nm
Cylinder bore x stroke
100x120 mm
Emission level
Tier 4 f. IV

More technical details, like: standard tyres, bucket capacity, steering mode, lifting force, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 297D2 FAQ

When was the Caterpillar 297D2 manufactured?

The Caterpillar 297D2 was manufactured from 2017 to 2019.

How much does the Caterpillar 297D2 skid steer loader weigh?

The Caterpillar 297D2 skid steer loader weighs 4.85 tons.

What are the transport dimensions of the Caterpillar 297D2 skid steer loader?

The Caterpillar 297D2 has a transport length of 3.94 meters, a transport width of 1.98 meters, and a transport height of 2.11 meters.

What is the travel speed of the Caterpillar 297D2 skid steer loader?

The Caterpillar 297D2 skid steer loader has a travel speed of 15.1 km/h.

What is the track width of the Caterpillar 297D2 skid steer loader?

The Caterpillar 297D2 skid steer loader has a track width of 457 mm.

What is the material handling capacity of the Caterpillar 297D2 skid steer loader?

The Caterpillar 297D2 skid steer loader has a rated operating capacity of 2250 kg and a maximum discharge height of 2.45 meters.

What is the bucket width of the Caterpillar 297D2 skid steer loader?

The bucket width of the Caterpillar 297D2 skid steer loader is 1.98 meters.

What operator safety and support features does the Caterpillar 297D2 skid steer loader have?

The Caterpillar 297D2 skid steer loader features a cabin with ROPS for driver protection.

How much is a Caterpillar 297D2 Skid steer loader (2017u20132019) worth?

The residual value of the Caterpillar 297D2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
