249D Caterpillar 249D Specifications & Technical Data (2016—2026)

The Caterpillar 249D is a skid steer loader that has been manufactured since 2016. It has a weight of 3.49 tons and a transport le…

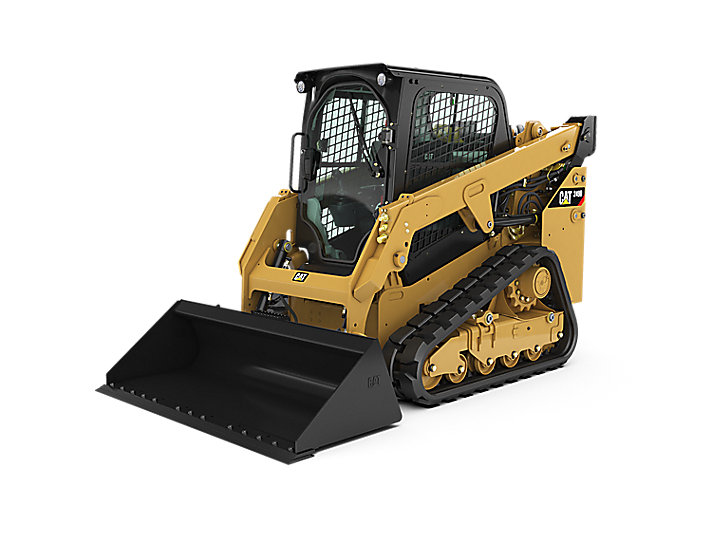

The Caterpillar 249D is a skid steer loader that has been manufactured since 2016. It has a weight of 3.49 tons and a transport length of 3.23 meters. The bucket capacity is 0.4 cubic meters with a width of 1.68 meters. The maximum discharge height is 2.25 meters. The transport width and height are both 1.68 and 2.04 meters respectively. The track width is 320 millimeters. It has a rated operating capacity of 1044 kilograms.

Skid Steer Loaders Caterpillar 249D
Skid Steer Loaders Caterpillar 249D
Skid Steer Loaders Caterpillar 249D
Skid Steer Loaders Caterpillar 249D
Skid Steer Loaders Caterpillar 249D
Skid Steer Loaders Caterpillar 249D
Skid Steer Loaders Caterpillar 249D
Skid Steer Loaders Caterpillar 249D

Technical specs - 249D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.49 t
Rated operating capacity
1044 kg
Track width
320 mm
Bucket width
1.68 m
Bucket capacity
0.4 m³
Driver protection
KbR
Transport length
3.23 m
Transport width
1.68 m
Transport height
2.04 m
Travel speed
11.2 km/h
Max. discharge height
2.25 m
Engine manuf.
Caterpillar
Engine type
C2.2
Engine power
49.6 kW
Displacement
2.2 l
Revolutions at max torque
1500 rpm
Max. torque
208 Nm
Cylinder bore x stroke
84x100 mm
Emission level
Tier 4 f. IIIB

More technical details, like: standard tyres, steering mode, lifting force, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 249D FAQ

When was the Caterpillar 249D manufactured?

The Caterpillar 249D was first produced in 2016.

How much does the Caterpillar 249D skid steer loader weigh?

The Caterpillar 249D skid steer loader weighs 3.49 tons.

What are the transport dimensions of the Caterpillar 249D skid steer loader?

The Caterpillar 249D has a transport length of 3.23 meters, a transport width of 1.68 meters, and a transport height of 2.04 meters.

What is the travel speed of the Caterpillar 249D skid steer loader?

The Caterpillar 249D skid steer loader has a travel speed of 11.2 km/h.

What is the track width of the Caterpillar 249D skid steer loader?

The Caterpillar 249D skid steer loader has a track width of 320 mm.

What is the material handling capacity of the Caterpillar 249D skid steer loader?

The Caterpillar 249D skid steer loader has a rated operating capacity of 1044 kg and a maximum discharge height of 2.25 meters.

What are the specifications of the primary work tool (bucket) on the Caterpillar 249D skid steer loader?

The Caterpillar 249D skid steer loader has a bucket with a capacity of 0.4 cubic meters and a width of 1.68 meters.

What operator safety and support features does the Caterpillar 249D skid steer loader have?

The Caterpillar 249D skid steer loader features a cabin with ROPS for driver protection.

How much is a Caterpillar 249D Skid steer loader (2016u20132025) worth?

The residual value of the Caterpillar 249D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
