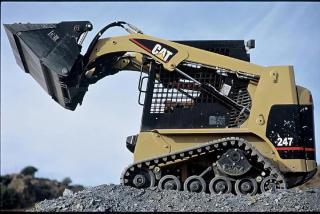

247 Caterpillar 247 Specifications & Technical Data (2003—2003)

The Caterpillar 247 Skid Steer Loader, manufactured in 2003, weighs 3.02 tons and has a transport length of 3.28 meters. It is equ…

The Caterpillar 247 Skid Steer Loader, manufactured in 2003, weighs 3.02 tons and has a transport length of 3.28 meters. It is equipped with a 0.4 cubic meter bucket and a bucket width of 1.68 meters. The maximum discharge height is 2.13 meters, and it can travel at a speed of 12 km/h. The transport width and height are both 1.68 and 1.99 meters respectively. With a lifting force of 13.66 kN, it has a track width of 380 mm. The rated operating capacity of this machine is 614 kg.

Skid Steer Loaders Caterpillar 247

Technical specs - 247 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.02 t
Rated operating capacity
614 kg
Track width
380 mm
Bucket width
1.68 m
Bucket capacity
0.4 m³
Driver protection
KbR
Steering mode
AL
Transport length
3.28 m
Transport width
1.68 m
Transport height
1.99 m
Travel speed
12 km/h
Max. discharge height
2.13 m
Lifting force
13.66 kN
Engine manuf.
Caterpillar
Engine type
3034
Engine power
41 kW
Displacement
3 l
Revolutions at max torque
2600 rpm

More technical details, like: standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, suspension seat, engine manufacturer, engine model...

More technical details, like: standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, suspension seat, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, drive method, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump flow, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 247 FAQ

When was the Caterpillar 247 skid steer loader manufactured?

The Caterpillar 247 skid steer loader was manufactured in 2003.

How much does the Caterpillar 247 skid steer loader weigh?

The Caterpillar 247 skid steer loader weighs 3.02 tons.

What are the transport dimensions of the Caterpillar 247 skid steer loader?

The Caterpillar 247 skid steer loader has a transport length of 3.28 meters, a transport width of 1.68 meters, and a transport height of 1.99 meters.

What is the travel speed of the Caterpillar 247 skid steer loader?

The Caterpillar 247 skid steer loader has a travel speed of 12 km/h.

What is the track width of the Caterpillar 247 skid steer loader?

The Caterpillar 247 skid steer loader has a track width of 380 mm.

What is the steering mode of the Caterpillar 247 skid steer loader?

The Caterpillar 247 skid steer loader has an all-wheel steering mode.

What is the power rating of the Caterpillar 247 skid steer loader?

The available data does not provide a power rating for the Caterpillar 247 skid steer loader.

What is the material handling capacity of the Caterpillar 247 skid steer loader?

The Caterpillar 247 skid steer loader has a rated operating capacity of 614 kg and a maximum discharge height of 2.13 meters.

What are the bucket specifications of the Caterpillar 247 skid steer loader?

The Caterpillar 247 skid steer loader has a bucket capacity of 0.4 cubic meters and a bucket width of 1.68 meters.

What operator safety and support features does the Caterpillar 247 skid steer loader have?

The Caterpillar 247 skid steer loader features a cabin with ROPS for driver protection.
