239D Caterpillar 239D Specifications & Technical Data (2015—2020)

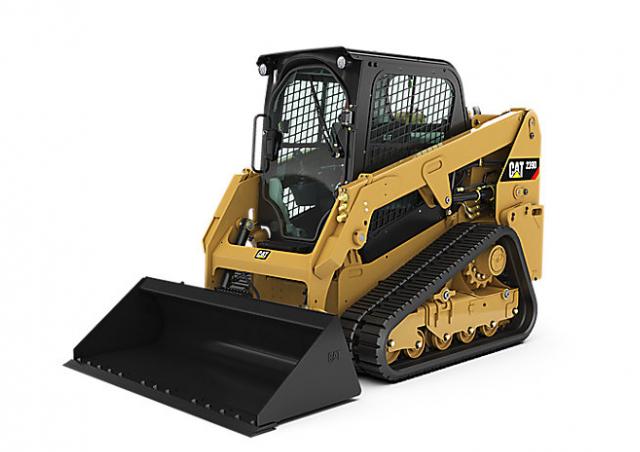

The Caterpillar 239D is a skid steer loader manufactured by Caterpillar from 2015 to 2020. It has a weight of 3.31 tons and a tran…

The Caterpillar 239D is a skid steer loader manufactured by Caterpillar from 2015 to 2020. It has a weight of 3.31 tons and a transport length of 3.23 meters. The bucket capacity is 0.4 cubic meters, with a bucket width of 1.68 meters. The maximum discharge height is 2.06 meters. The transport width is 1.68 meters, and the transport height is 2.03 meters. The track width is 320 millimeters, and the rated operating capacity is 930 kilograms.

Skid Steer Loaders Caterpillar 239D

Technical specs - 239D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.31 t
Rated operating capacity
930 kg
Track width
320 mm
Bucket width
1.68 m
Bucket capacity
0.4 m³
Driver protection
Kb
Transport length
3.23 m
Transport width
1.68 m
Transport height
2.03 m
Travel speed
11.2 km/h
Max. discharge height
2.06 m
Engine manuf.
Caterpillar
Engine type
C2.2 CRDI
Engine power
49.6 kW
Displacement
2.2 l
Revolutions at max torque
1500 rpm
Max. torque
208 Nm
Cylinder bore x stroke
84x100 mm
Emission level
Tier 4 f. IIIB

More technical details, like: standard tyres, steering mode, lifting force, model series, dimension lxwxh, no. of cylinders, undercarriage type, lift geometry, access, suspension seat, telematics available, platform...

More technical details, like: standard tyres, steering mode, lifting force, model series, dimension lxwxh, no. of cylinders, undercarriage type, lift geometry, access, suspension seat, telematics available, platform, security system available, engine manufacturer, engine model, emission rating, number of cylinders, aspiration, engine output - net, engine output - gross, rated speed - torque, torque, transmission type, drive method, track rollers, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - bucket, hydraulic power, hydraulic power - option, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 239D FAQ

When was the Caterpillar 239D skid steer loader manufactured?

The Caterpillar 239D skid steer loader was manufactured from 2015 to 2020.

How much does the Caterpillar 239D skid steer loader weigh?

The Caterpillar 239D skid steer loader weighs 3.31 tons.

What are the transport dimensions of the Caterpillar 239D skid steer loader?

The Caterpillar 239D has a transport length of 3.23 meters, a transport width of 1.68 meters, and a transport height of 2.03 meters.

What is the travel speed of the Caterpillar 239D skid steer loader?

The Caterpillar 239D skid steer loader has a travel speed of 11.2 km/h.

What is the track width of the Caterpillar 239D skid steer loader?

The Caterpillar 239D skid steer loader has a track width of 320 mm.

What is the material handling capacity of the Caterpillar 239D skid steer loader?

The Caterpillar 239D skid steer loader has a rated operating capacity of 930 kg and a maximum discharge height of 2.06 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 239D skid steer loader?

The Caterpillar 239D skid steer loader has a bucket with a capacity of 0.4 cubic meters and a width of 1.68 meters.

What operator safety features does the Caterpillar 239D have?

The Caterpillar 239D has a cabin for driver protection.

How much is a Caterpillar 239D Skid steer loader (2015u20132020) worth?

The residual value of the Caterpillar 239D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
