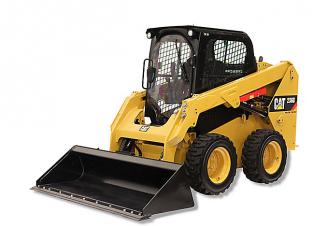

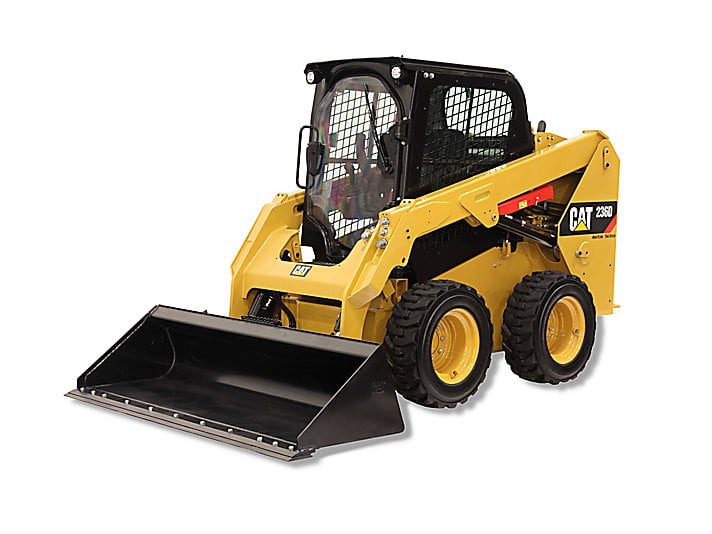

236D Caterpillar 236D Specifications & Technical Data (2015—2020)

The Caterpillar 236D is a skid steer loader manufactured by Caterpillar from 2015 to 2020. It has a weight of 2.97 tons and a tran…

The Caterpillar 236D is a skid steer loader manufactured by Caterpillar from 2015 to 2020. It has a weight of 2.97 tons and a transport length of 3.49 meters. The bucket capacity is 0.36 cubic meters, with a bucket width of 1.52 meters. The maximum discharge height is 2.36 meters. The transport width is 1.68 meters, and the transport height is 2.08 meters. The lifting force is 22.57 kilonewtons, and the rated operating capacity is 818 kilograms.

Skid Steer Loaders Caterpillar 236D

Technical specs - 236D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.97 t
Rated operating capacity
818 kg
Standard tyres
10x16.5
Bucket width
1.52 m
Bucket capacity
0.36 m³
Driver protection
Kb
Steering mode
AL
Transport length
3.49 m
Transport width
1.68 m
Transport height
2.08 m
Travel speed
17.1 km/h
Max. discharge height
2.36 m
Lifting force
22.57 kN
Engine manuf.
Caterpillar
Engine type
C3.3B DIT
Engine power
54.6 kW
Displacement
3.3 l
Max. torque
257 Nm
Cylinder bore x stroke
94x120 mm
Emission level
Tier 4 f

More technical details, like: track width, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, platform, security system available...

More technical details, like: track width, model series, dimension lxwxh, revolutions at max torque, no. of cylinders, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, platform, security system available, engine manufacturer, engine model, emission rating, aspiration, engine output - net, engine output - gross, torque, transmission type, tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, tipping load, operating capacity, speed - maximum, breakout - bucket, pump type, hydraulic power, hydraulic power - option, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 236D FAQ

When was the Caterpillar 236D skid steer loader manufactured?

The Caterpillar 236D skid steer loader was manufactured from 2015 to 2020.

How much does the Caterpillar 236D skid steer loader weigh?

The Caterpillar 236D skid steer loader weighs 2.97 tons.

What are the transport dimensions of the Caterpillar 236D skid steer loader?

The Caterpillar 236D skid steer loader has a transport length of 3.49 meters, a transport width of 1.68 meters, and a transport height of 2.08 meters.

What is the travel speed of the Caterpillar 236D skid steer loader?

The Caterpillar 236D skid steer loader has a travel speed of 17.1 km/h.

What are the undercarriage specifications of the Caterpillar 236D skid steer loader?

The Caterpillar 236D skid steer loader is equipped with standard tyres sized 10x16.5.

What is the steering mode of the Caterpillar 236D skid steer loader?

The Caterpillar 236D skid steer loader features all-wheel steering.

What is the lifting force of the Caterpillar 236D skid steer loader?

The Caterpillar 236D skid steer loader has a lifting force of 22.57 kN.

What is the material handling capacity of the Caterpillar 236D skid steer loader?

The Caterpillar 236D skid steer loader has a rated operating capacity of 818 kg and a maximum discharge height of 2.36 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 236D skid steer loader?

The primary work tool bucket of the Caterpillar 236D has a capacity of 0.36 cubic meters and a width of 1.52 meters.

What operator safety and support features does the Caterpillar 236D have?

The Caterpillar 236D provides operator safety with a cabin for driver protection.
