232D Caterpillar 232D Specifications & Technical Data (2016—2026)

The Caterpillar 232D is a skid steer loader manufactured by Caterpillar since 2016. It has a weight of 2.82 tons and a transport l…

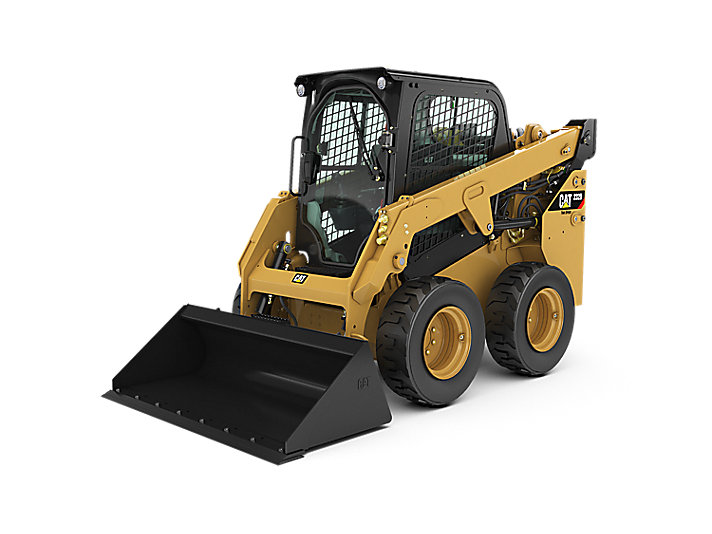

The Caterpillar 232D is a skid steer loader manufactured by Caterpillar since 2016. It has a weight of 2.82 tons and a transport length of 3.23 meters. The bucket capacity is 0.36 cubic meters, with a bucket width of 1.52 meters. The maximum discharge height is 2.25 meters, and it has a transport width of 1.5 meters and a transport height of 2.03 meters. The lifting force is 17.72 kilonewtons, and the rated operating capacity is 839 kilograms.

Skid Steer Loaders Caterpillar 232D

Technical specs - 232D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.82 t
Rated operating capacity
839 kg
Standard tyres
10x16.5
Bucket width
1.52 m
Bucket capacity
0.36 m³
Driver protection
KbR
Steering mode
AL
Transport length
3.23 m
Transport width
1.5 m
Transport height
2.03 m
Travel speed
17.8 km/h
Max. discharge height
2.25 m
Lifting force
17.72 kN
Engine manuf.
Caterpillar
Engine type
C2.2
Engine power
49.6 kW
Displacement
2.2 l
Revolutions at max torque
1500 rpm
Max. torque
208 Nm
Cylinder bore x stroke
84x100 mm
Emission level
Tier 4 f. IIIB

More technical details, like: track width, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download specalog and datasheets (PDF)

Caterpillar 232D FAQ

When was the Caterpillar 232D skid steer loader manufactured?

The Caterpillar 232D skid steer loader was first produced in 2016.

How much does the Caterpillar 232D skid steer loader weigh?

The Caterpillar 232D skid steer loader weighs 2.82 tons.

What are the transport dimensions of the Caterpillar 232D skid steer loader?

The Caterpillar 232D skid steer loader has a transport length of 3.23 meters, a transport width of 1.5 meters, and a transport height of 2.03 meters.

What is the travel speed of the Caterpillar 232D skid steer loader?

The Caterpillar 232D skid steer loader has a travel speed of 17.8 km/h.

What are the undercarriage specifications of the Caterpillar 232D skid steer loader?

The Caterpillar 232D skid steer loader is equipped with standard tyres sized 10x16.5.

What is the steering mode of the Caterpillar 232D skid steer loader?

The Caterpillar 232D skid steer loader has all-wheel steering.

What are the power ratings of the Caterpillar 232D skid steer loader?

The source data does not provide power rating information for the Caterpillar 232D skid steer loader.

What is the material handling capacity of the Caterpillar 232D skid steer loader?

The Caterpillar 232D skid steer loader has a rated operating capacity of 839 kg and a maximum discharge height of 2.25 meters.

What are the specifications of the primary work tool bucket on the Caterpillar 232D skid steer loader?

The primary work tool bucket of the Caterpillar 232D has a capacity of 0.36 cubic meters and a width of 1.52 meters.

What operator safety and support features does the Caterpillar 232D skid steer loader have?

The Caterpillar 232D skid steer loader is equipped with a cabin that includes ROPS (Roll-Over Protective Structure) for driver protection.

How much is a Caterpillar 232D Skid steer loader (2016u20132025) worth?

The residual value of the Caterpillar 232D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
