TR270B Case TR270B Specifications & Technical Data (2020—2026)

The Case TR270B is a skid steer loader manufactured by Case since 2020. It has a weight of 3.75 tons and a transport length of 3.2…

The Case TR270B is a skid steer loader manufactured by Case since 2020. It has a weight of 3.75 tons and a transport length of 3.292 meters. The maximum discharge height is 2.495 meters, and it has a travel speed of 8.2 km/h. The transport width is 1.676 meters, and the transport height is 1.998 meters. The lifting force is 32.3 kilonewtons, and the rated operating capacity is 1225 kilograms.

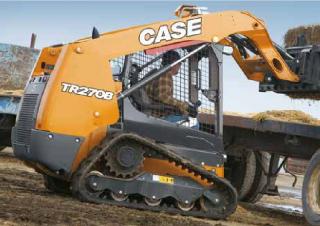

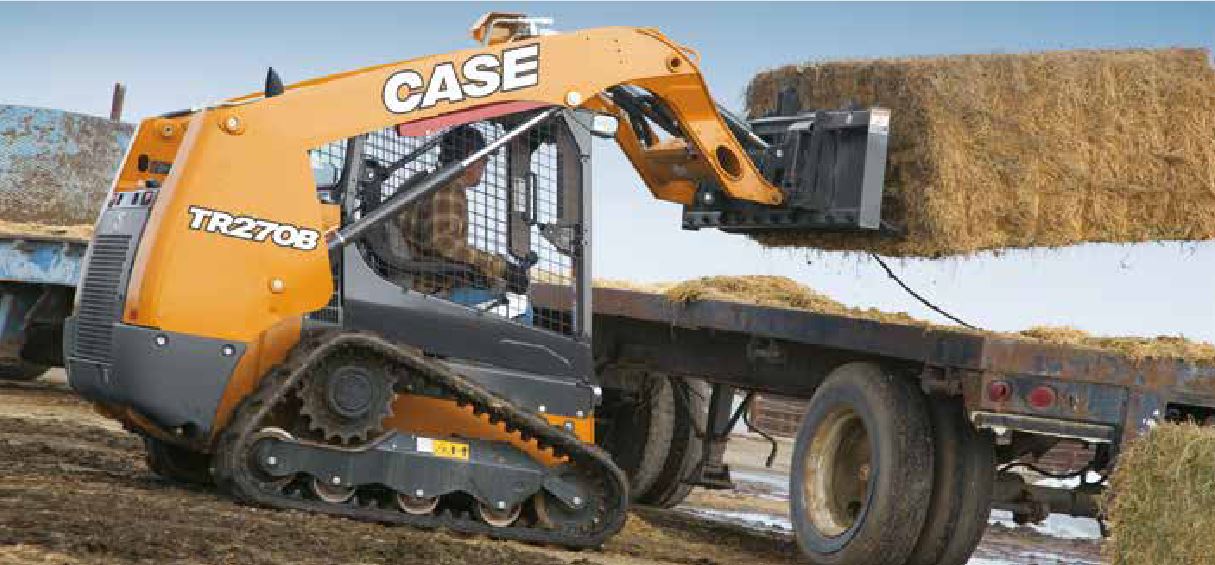

Skid Steer Loaders Case TR270B
Skid Steer Loaders Case TR270B
Skid Steer Loaders Case TR270B
Skid Steer Loaders Case TR270B
Skid Steer Loaders Case TR270B
Skid Steer Loaders Case TR270B

Technical specs - TR270B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.75 t
Rated operating capacity
1225 kg
Standard tyres
12.00x16.5 tyres
Transport length
3.292 m
Transport width
1.676 m
Transport height
1.998 m
Travel speed
8.2 km/h
Max. discharge height
2.495 m
Lifting force
32.3 kN
Engine manuf.
FPT
Engine type
F5H
Engine power
55 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
314 Nm
Emission level
V

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case TR270B FAQ

When was the Case TR270B manufactured?

The Case TR270B was first produced in 2020.

How much does the Case TR270B skid steer loader weigh?

The Case TR270B skid steer loader weighs 3.75 tons.

What are the transport dimensions of the Case TR270B skid steer loader?

The Case TR270B has a transport length of 3.29 meters, a transport width of 1.68 meters, and a transport height of 2 meters.

What is the travel speed of the Case TR270B skid steer loader?

The Case TR270B skid steer loader has a travel speed of 8.2 km/h.

What are the undercarriage tyre specifications of the Case TR270B skid steer loader?

The Case TR270B skid steer loader is equipped with 12.00x16.5 standard tyres.

What is the lifting force of the Case TR270B skid steer loader?

The Case TR270B skid steer loader has a lifting force of 32.3 kN.

What is the material handling capacity of the Case TR270B skid steer loader?

The Case TR270B skid steer loader has a rated operating capacity of 1225 kg and a maximum discharge height of 2.5 meters.
