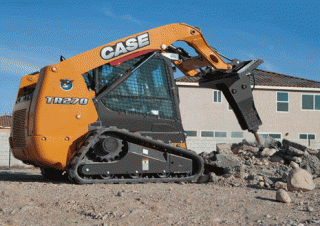

TR270 Case TR270 Specifications & Technical Data (2015—2026)

The Case TR270 is a skid steer loader manufactured by Case since 2015. It has a weight of 3.75 tons and a transport length of 3.29…

The Case TR270 is a skid steer loader manufactured by Case since 2015. It has a weight of 3.75 tons and a transport length of 3.292 meters. The maximum discharge height is 2.495 meters, and it has a travel speed of 8.2 km/h. The transport width is 1.676 meters, and the transport height is 1.998 meters. The lifting force is 32.3 kilonewtons, and the rated operating capacity is 1225 kilograms.

Skid Steer Loaders Case TR270

Technical specs - TR270 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.75 t
Rated operating capacity
1225 kg
Standard tyres
12.00x16.5 tyres
Transport length
3.292 m
Transport width
1.676 m
Transport height
1.998 m
Travel speed
8.2 km/h
Max. discharge height
2.495 m
Lifting force
32.3 kN
Engine manuf.
FPT
Engine type
F5H
Engine power
55 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
314 Nm
Emission level
T4F

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, undercarriage type, lift geometry, access...

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, undercarriage type, lift geometry, access, suspension seat, telematics available, engine manufacturer, engine model, emission rating, number of cylinders, aspiration, rated speed, engine output - net, engine output - gross, rated speed - torque, torque, transmission type, drive method, track rollers, track shoe width, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, track length on ground, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, ground bearing pressure, speed - maximum, breakout - lift, breakout - bucket, hydraulic power, hydraulic power - option, pump flow, pump flow - option, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Click and see the specifications of Case TR270 in the PDF

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case TR270 FAQ

When was the Case TR270 manufactured?

The Case TR270 was first produced in 2015.

How much does the Case TR270 skid steer loader weigh?

The Case TR270 skid steer loader weighs 3.75 tons.

What are the transport dimensions of the Case TR270 skid steer loader?

The Case TR270 skid steer loader has a transport length of 3.29 meters, a transport width of 1.68 meters, and a transport height of 2 meters.

What is the travel speed of the Case TR270 skid steer loader?

The Case TR270 skid steer loader has a travel speed of 8.2 km/h.

What are the undercarriage specifications of the Case TR270 skid steer loader?

The Case TR270 skid steer loader is equipped with standard 12.00x16.5 tyres for its undercarriage.

What are the power ratings of the Case TR270 skid steer loader?

The available data does not provide power ratings for the Case TR270 skid steer loader.

What is the material handling capacity of the Case TR270 skid steer loader?

The Case TR270 skid steer loader has a rated operating capacity of 1225 kg and a maximum discharge height of 2.5 meters.
