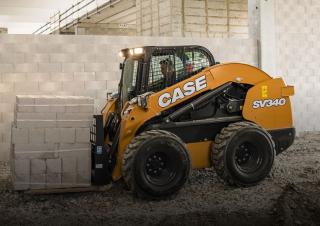

SV340 Case SV340 Specifications & Technical Data (2017—2026)

The Case SV340 is a skid steer loader manufactured by Case since 2017. It has a weight of 4.14 tons and a transport length of 2.99…

The Case SV340 is a skid steer loader manufactured by Case since 2017. It has a weight of 4.14 tons and a transport length of 2.99 meters. The travel speed of this machine is 12.4 km/h, and it has a transport width of 1.8 meters and a transport height of 2 meters. The lifting force of the SV340 is 36.3 kN, and it has a rated operating capacity of 1545 kg.

Skid Steer Loaders Case SV340

Technical specs - SV340 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.14 t
Rated operating capacity
1545 kg
Standard tyres
12.00x16.5 tyres
Transport length
2.99 m
Transport width
1.8 m
Transport height
2 m
Travel speed
12.4 km/h
Lifting force
36.3 kN
Model series
B
Engine manuf.
FPT
Engine type
F5H
Engine power
67 kW
Displacement
3.4 l
Revolutions at max torque
1400 rpm
Max. torque
383 Nm
Emission level
T4i

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, max. discharge height, dimension lxwxh, no. of cylinders, cylinder bore x stroke, lift geometry, access, rating standard - rops...

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, max. discharge height, dimension lxwxh, no. of cylinders, cylinder bore x stroke, lift geometry, access, rating standard - rops, rating standard - fops, telematics available, platform, security system available, engine manufacturer, engine model, emission rating, emissions technology, after treatment system, aspiration, rated speed, engine output - net, engine output - gross, torque, transmission type, drive chain rating [ansi], tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, hydraulic power, hydraulic power - option, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case SV340 FAQ

When was the Case SV340 manufactured?

The Case SV340 was first produced in 2017.

How much does the Case SV340 skid steer loader weigh?

The Case SV340 skid steer loader weighs 4.14 tons.

What are the transport dimensions of the Case SV340 skid steer loader?

The Case SV340 has a transport length of 2.99 meters, a transport width of 1.8 meters, and a transport height of 2 meters.

What is the travel speed of the Case SV340 skid steer loader?

The Case SV340 skid steer loader has a travel speed of 12.4 km/h.

What are the undercarriage specifications of the Case SV340 skid steer loader?

The Case SV340 skid steer loader has standard 12.00x16.5 tyres.

What is the lifting force of the Case SV340 skid steer loader?

The Case SV340 skid steer loader has a lifting force of 36.3 kN.

What is the material handling capacity of the Case SV340 skid steer loader?

The Case SV340 skid steer loader has a rated operating capacity of 1545 kilograms.
