SV250B Case SV250B Specifications & Technical Data (2021—2026)

The Case SV250B is a skid steer loader manufactured by Case since 2021. It has a weight of 3.69 tons and a transport length of 3.8…

The Case SV250B is a skid steer loader manufactured by Case since 2021. It has a weight of 3.69 tons and a transport length of 3.84 meters. The maximum discharge height is 2.47 meters, and it has a travel speed of 16.9 km/h. The transport width is 1.77 meters, and the transport height is 2 meters. The lifting force is 33.7 kilonewtons, and the rated operating capacity is 1135 kilograms.

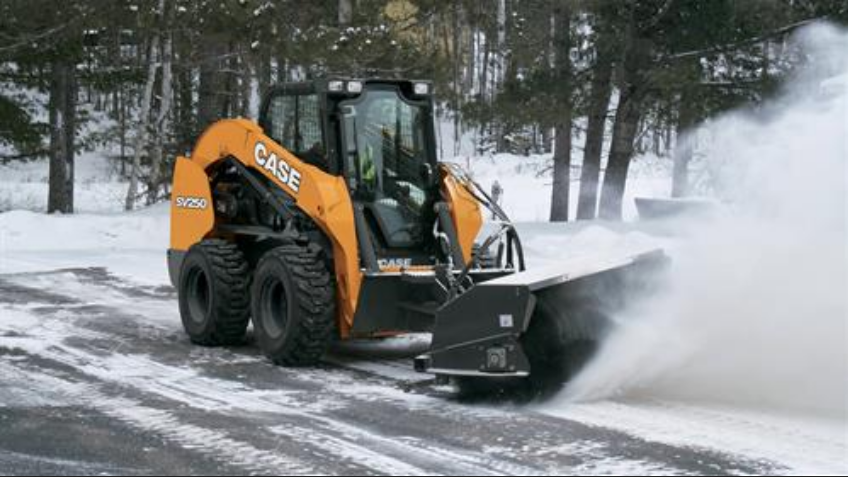

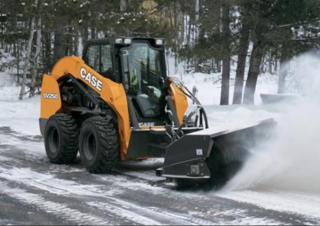

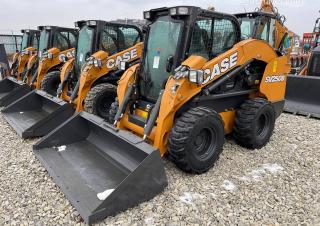

Skid Steer Loaders Case SV250B
Skid Steer Loaders Case SV250B
Skid Steer Loaders Case SV250B
Skid Steer Loaders Case SV250B
Skid Steer Loaders Case SV250B
Skid Steer Loaders Case SV250B

Technical specs - SV250B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.69 t
Rated operating capacity
1135 kg
Transport length
3.84 m
Transport width
1.77 m
Transport height
2 m
Travel speed
16.9 km/h
Max. discharge height
2.47 m
Lifting force
33.7 kN
Model series
B
Engine manuf.
FPT
Engine type
F5C E5454 B*A005
Engine power
61 kW
Displacement
3.2 l
Revolutions at max torque
1400 rpm
Max. torque
305 Nm

More technical details, like: track width, standard tyres, bucket width, bucket capacity, driver protection, steering mode, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case SV250B FAQ

When was the Case SV250B manufactured?

The Case SV250B was first produced in 2021.

How much does the Case SV250B skid steer loader weigh?

The Case SV250B skid steer loader weighs 3.69 tons.

What are the transport dimensions of the Case SV250B skid steer loader?

The Case SV250B skid steer loader has a transport length of 3.84 meters, a transport width of 1.77 meters, and a transport height of 2 meters.

What is the travel speed of the Case SV250B skid steer loader?

The Case SV250B skid steer loader has a travel speed of 16.9 km/h.

What is the lifting force of the Case SV250B skid steer loader, and is there any power rating data available?

The Case SV250B skid steer loader has a lifting force of 33.7 kN. No power rating data is provided in the available source information.

What is the material handling capacity of the Case SV250B skid steer loader?

The Case SV250B has a rated operating capacity of 1135 kg and a maximum discharge height of 2.47 meters.

How much is a Case SV250B Skid steer loader (2021u20132025) worth?

The residual value of the Case SV250B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
