SV 185 Case SV 185 Specifications & Technical Data (2010—2015)

The Case SV 185 is a skid steer loader manufactured by Case from 2010 to 2015. It has a weight of 2.81 tons and a transport length…

The Case SV 185 is a skid steer loader manufactured by Case from 2010 to 2015. It has a weight of 2.81 tons and a transport length of 2.71 meters. The transport height is 1.97 meters, and the rated operating capacity is 840 kilograms.

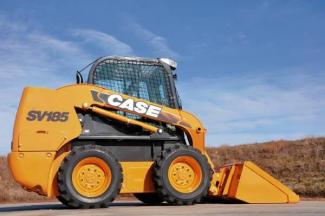

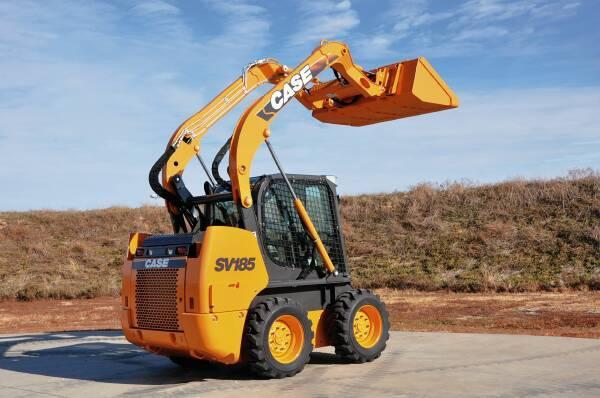

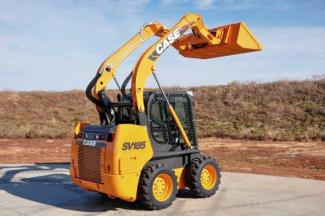

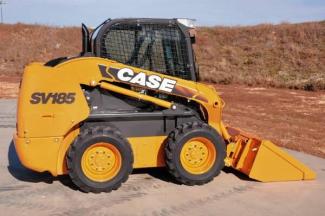

Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185
Skid Steer Loaders Case SV 185

Technical specs - SV 185 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.81 t
Rated operating capacity
840 kg
Transport length
2.71 m
Transport height
1.97 m
Travel speed
11.9 km/h
Engine manuf.
ISM
Engine type
422 T-M 3
Engine power
45 kW
Displacement
2.2 l
Revolutions at max torque
2900 rpm

More technical details, like: track width, standard tyres, bucket width, bucket capacity, driver protection, steering mode, transport width, max. discharge height, lifting force, model series, dimension lxwxh, max. torque...

More technical details, like: track width, standard tyres, bucket width, bucket capacity, driver protection, steering mode, transport width, max. discharge height, lifting force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, telematics available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, torque, transmission type, drive chain rating [ansi], tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, hydraulic power, hydraulic power - option, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case SV 185 FAQ

When was the Case SV 185 manufactured?

The Case SV 185 was manufactured from 2010 to 2015.

How much does the Case SV 185 skid steer loader weigh?

The Case SV 185 skid steer loader weighs 2.81 tons.

What are the transport dimensions of the Case SV 185 skid steer loader?

The Case SV 185 has a transport length of 2.71 meters and a transport height of 1.97 meters.

What is the travel speed of the Case SV 185 skid steer loader?

The Case SV 185 skid steer loader has a travel speed of 11.9 km/h.

What is the material handling capacity of the Case SV 185 skid steer loader?

The Case SV 185 skid steer loader has a rated operating capacity of 840 kilograms.

How much is a Case SV 185 Skid steer loader (2010u20132015) worth?

The residual value of the Case SV 185 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
