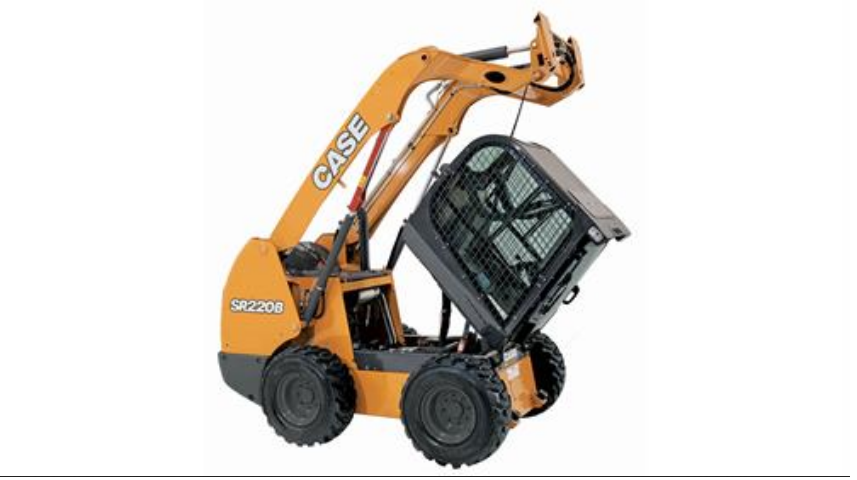

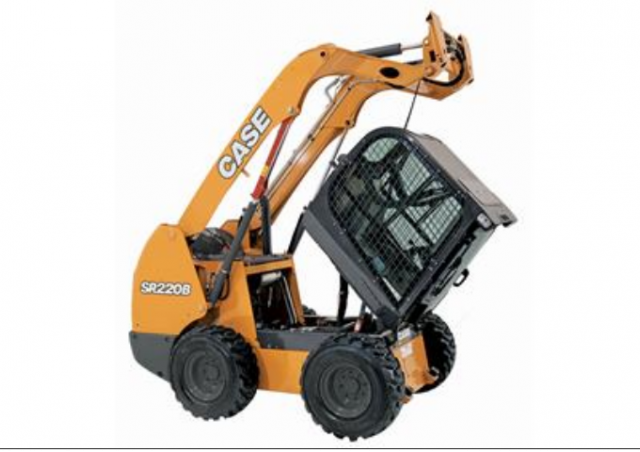

SR220B Case SR220B Specifications & Technical Data (2021—2026)
Technical specs - SR220B Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 3.43 t
- Rated operating capacity
- 1000 kg
- Transport length
- 3.84 m
- Transport width
- 1.77 m
- Transport height
- 2 m
- Travel speed
- 16.9 km/h
- Max. discharge height
- 2.42 m
- Lifting force
- 24.4 kN
- Model series
- B
- Engine manuf.
- FPT
- Engine type
- F5C E5454 B*A005
- Engine power
- 61 kW
- Displacement
- 3.2 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 305 Nm
More technical details, like: track width, standard tyres, bucket width, bucket capacity, driver protection, steering mode, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with ROPS cabin and std. shovel with teeth
Special equipment
- Diesel particulate filter
-
No
- LPG motor
-
No
- Burglar proof system
-
No
