SR200B Case SR200B Specifications & Technical Data (2021—2026)

The Case SR200B is a skid steer loader manufactured by Case since 2021. It has a weight of 3.18 tons and a transport length of 3.5…

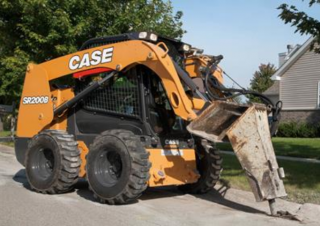

The Case SR200B is a skid steer loader manufactured by Case since 2021. It has a weight of 3.18 tons and a transport length of 3.53 meters. The maximum discharge height is 2.35 meters, and it has a travel speed of 15.9 km/h. The transport width is 1.76 meters, and the transport height is 2 meters. The lifting force is 20.3 kilonewtons, and the rated operating capacity is 905 kilograms.

Skid Steer Loaders Case SR200B

Technical specs - SR200B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3.18 t
Rated operating capacity
905 kg
Transport length
3.53 m
Transport width
1.76 m
Transport height
2 m
Travel speed
15.9 km/h
Max. discharge height
2.35 m
Lifting force
20.3 kN
Model series
B
Engine manuf.
FPT
Engine type
F5C E5454 G*A001
Engine power
55 kW
Displacement
3.2 l
Revolutions at max torque
1400 rpm
Max. torque
275 Nm

More technical details, like: track width, standard tyres, bucket width, bucket capacity, driver protection, steering mode, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case SR200B FAQ

When was the Case SR200B manufactured?

The Case SR200B was first produced in 2021.

How much does the Case SR200B skid steer loader weigh?

The Case SR200B skid steer loader weighs 3.18 tons.

What are the transport dimensions of the Case SR200B skid steer loader?

The Case SR200B has a transport length of 3.53 meters, a transport width of 1.76 meters, and a transport height of 2 meters.

What is the travel speed of the Case SR200B skid steer loader?

The Case SR200B skid steer loader has a travel speed of 15.9 km/h.

What is the power rating of the Case SR200B skid steer loader?

The source data does not provide power rating information for the Case SR200B skid steer loader.

What is the material handling capacity of the Case SR200B skid steer loader?

The Case SR200B skid steer loader has a rated operating capacity of 905 kg and a maximum discharge height of 2.35 meters.

How much is a Case SR200B Skid steer loader (2021u20132025) worth?

The residual value of the Case SR200B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
