SR175 Case SR175 Specifications & Technical Data (2016—2026)

The Case SR175 is a skid steer loader manufactured by Case since 2016. It has a weight of 2.84 tons and a transport length of 3.31…

The Case SR175 is a skid steer loader manufactured by Case since 2016. It has a weight of 2.84 tons and a transport length of 3.31 meters. The maximum discharge height is 2.47 meters, and it has a travel speed of 11.9 km/h. The transport width is 1.68 meters, and the transport height is 1.97 meters. The lifting force is 32.3 kilonewtons, and the rated operating capacity is 790 kilograms.

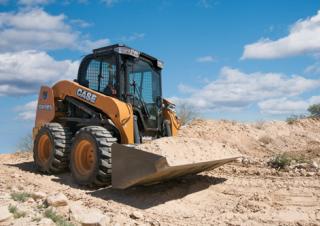

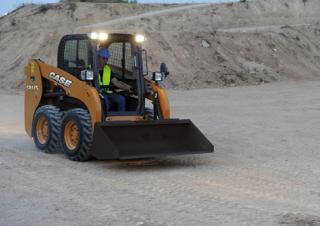

Skid Steer Loaders Case SR175
Skid Steer Loaders Case SR175
Skid Steer Loaders Case SR175
Skid Steer Loaders Case SR175

Technical specs - SR175 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.84 t
Rated operating capacity
790 kg
Standard tyres
10X16.5 Non-Pneumatic 64OTW
Transport length
3.31 m
Transport width
1.68 m
Transport height
1.97 m
Travel speed
11.9 km/h
Max. discharge height
2.47 m
Lifting force
32.3 kN
Engine manuf.
ISM
Engine type
N844 LTA-DI-F
Engine power
50 kW
Displacement
2.2 l
Revolutions at max torque
1800 rpm
Max. torque
208 Nm
Emission level
T4F

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case SR175 FAQ

When was the Case SR175 manufactured?

The Case SR175 was first produced in 2016.

How much does the Case SR175 skid steer loader weigh?

The Case SR175 skid steer loader weighs 2.84 tons.

What are the transport dimensions of the Case SR175 skid steer loader?

The Case SR175 skid steer loader has a transport length of 3.31 meters, a transport width of 1.68 meters, and a transport height of 1.97 meters.

What is the travel speed of the Case SR175 skid steer loader?

The Case SR175 skid steer loader has a travel speed of 11.9 km/h.

What are the undercarriage specifications of the Case SR175 skid steer loader?

The Case SR175 skid steer loader is equipped with 10X16.5 Non-Pneumatic 64OTW standard tyres.

What power rating information is available for the Case SR175 skid steer loader?

The source data does not provide any power rating information for the Case SR175 skid steer loader.

What is the material handling capacity of the Case SR175 skid steer loader?

The Case SR175 skid steer loader has a rated operating capacity of 790 kg and a maximum discharge height of 2.47 meters.
