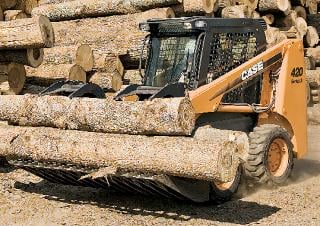

420 S 3 Case 420 S 3 Specifications & Technical Data (2008—2012)

Model rating
8,50 / 10

The Case 420 S 3 Skid Steer Loader, manufactured from 2008 to 2012, weighs 3 tons and has a transport length of 3.28 meters. It is…

The Case 420 S 3 Skid Steer Loader, manufactured from 2008 to 2012, weighs 3 tons and has a transport length of 3.28 meters. It is equipped with a bucket capacity of 0.43 cubic meters and a bucket width of 1.67 meters. With a maximum discharge height of 2.44 meters, it has a transport width of 1.5 meters and a transport height of 1.92 meters. The skid steer loader has a lifting force of 24.5 kilonewtons and a rated operating capacity of 839 kilograms.

Skid Steer Loaders Case 420 S 3

Technical specs - 420 S 3 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
3 t
Rated operating capacity
839 kg
Standard tyres
10.00x16.5
Bucket width
1.67 m
Bucket capacity
0.43 m³
Driver protection
KbR
Steering mode
AL
Transport length
3.28 m
Transport width
1.5 m
Transport height
1.92 m
Travel speed
16.9 km/h
Max. discharge height
2.44 m
Lifting force
24.5 kN
Model series
S
Engine manuf.
Case
Engine type
432T-M3
Engine power
55 kW
Displacement
3.2 l
Revolutions at max torque
2300 rpm

More technical details, like: track width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, emission rating, aspiration...

More technical details, like: track width, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, lift geometry, access, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, torque, transmission type, drive chain rating [ansi], tyre size, length - no bucket, length - with bucket, width - no bucket, width - with bucket, height - top of cab, ground clearance, wheelbase, rear departure angle, height to hinge pin, dump angle, dump height - maximum, reach - max dump height, lift height, turning radius - rear corner, turning radius - bucket corner, fuel tank, heaped capacity, tipping load, operating capacity, speed - maximum, breakout - lift, breakout - bucket, pump type, hydraulic power, hydraulic power - option, pump flow, system pressure, self levelling, operating weight are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case 420 S 3 FAQ

When was the Case 420 S 3 skid steer loader manufactured?

The Case 420 S 3 skid steer loader was manufactured from 2008 to 2012.

How much does the Case 420 S 3 skid steer loader weigh?

The Case 420 S 3 skid steer loader weighs 3 tons.

What are the transport dimensions of the Case 420 S 3 skid steer loader?

The Case 420 S 3 skid steer loader has a transport length of 3.28 meters, a transport width of 1.5 meters, and a transport height of 1.92 meters.

What is the travel speed of the Case 420 S 3 skid steer loader?

The Case 420 S 3 skid steer loader has a travel speed of 16.9 km/h.

What are the standard tyres of the Case 420 S 3 skid steer loader?

The Case 420 S 3 skid steer loader has standard tyres sized 10.00x16.5.

What is the steering mode of the Case 420 S 3 skid steer loader?

The Case 420 S 3 skid steer loader has an all-wheel steering mode.

What is the lifting force of the Case 420 S 3 skid steer loader?

The Case 420 S 3 skid steer loader has a lifting force of 24.5 kN.

What is the material handling capacity of the Case 420 S 3 skid steer loader?

The Case 420 S 3 skid steer loader has a rated operating capacity of 839 kg and a maximum discharge height of 2.44 meters.

What are the bucket specifications of the Case 420 S 3 skid steer loader?

The Case 420 S 3 skid steer loader has a bucket capacity of 0.43 cubic meters and a bucket width of 1.67 meters.

What operator safety features does the Case 420 S 3 skid steer loader have?

The Case 420 S 3 skid steer loader is equipped with a cabin that includes ROPS for driver protection.

How much is a Case 420 S 3 Skid steer loader (2008u20132012) worth?

The residual value of the Case 420 S 3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
