1845C Case 1845C Specifications & Technical Data (1985—2010)

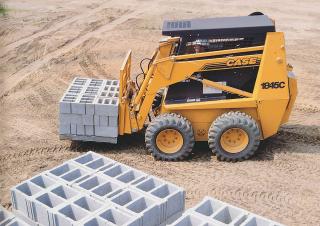

The Case 1845C is a skid steer loader manufactured by Case since 1985. It has a weight of 2.76 tons and a transport length of 1.83…

The Case 1845C is a skid steer loader manufactured by Case since 1985. It has a weight of 2.76 tons and a transport length of 1.83 meters. The travel speed of this construction machine is 12 km/h, with a transport width of 1.37 meters and a transport height of 3.7 meters. The rated operating capacity is 771.12 kilograms.

Skid Steer Loaders Case 1845C

Technical specs - 1845C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.76 t
Rated operating capacity
771.12 kg
Standard tyres
10X16.5
Transport length
1.83 m
Transport width
1.37 m
Transport height
3.7 m
Travel speed
12 km/h
Model series
C
Engine manuf.
Case
Engine type
4-390
Engine power
42 kW
Displacement
3.917 l
Revolutions at max torque
2000 rpm

More technical details, like: track width, bucket width, bucket capacity, driver protection, steering mode, max. discharge height, lifting force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with ROPS cabin and std. shovel with teeth

Special equipment

Diesel particulate filter
No
LPG motor
No
Burglar proof system
No

Download datasheets (PDF)

Case 1845C FAQ

When was the Case 1845C manufactured?

The Case 1845C was first produced in 1985.

How much does the Case 1845C skid steer loader weigh?

The Case 1845C skid steer loader weighs 2.76 tons.

What are the transport dimensions of the Case 1845C skid steer loader?

The Case 1845C has a transport length of 1.83 meters, a transport width of 1.37 meters, and a transport height of 3.7 meters.

What is the travel speed of the Case 1845C skid steer loader?

The Case 1845C skid steer loader has a travel speed of 12 km/h.

What is the standard tyre size of the Case 1845C skid steer loader?

The Case 1845C skid steer loader has standard tyres sized 10X16.5.

What is the material handling capacity of the Case 1845C skid steer loader?

The Case 1845C skid steer loader has a rated operating capacity of 771.12 kilograms.

How much is a Case 1845C Skid steer loader (1985u20132025) worth?

The residual value of the Case 1845C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
